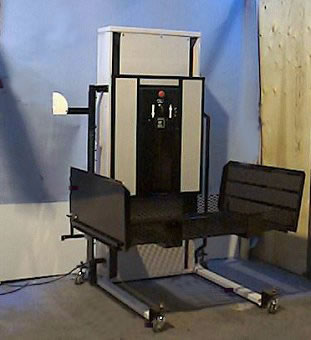

The AmeriGlide Atlas Portable Vertical Platform Lift is designed to be moved quickly and easily. This model can support up to 550 lbs. and its standard lifting height is 52 inches. This porch lift features an emergency manual override as a safety precaution. This type of platform lift is very useful for events at schools, churches, and fairgrounds.
| Lifting Capacity | 550 lb |
| Standard Lift Height | 52" |
| Maximum Lift Height Upgrade | 52" |
| Portable | Yes |
| Arrives Assembled | No |
| Drive System | Direct Worm-Gear & Screw-Nut |
| Optional Drive Systems | None |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | None Available |
| Keyed Platform Control | Included |
| Call-Send Controls | None Available |
| Platform Type | Expanded Metal |
| Platform Size | 34" x 54" |
| Optional Platform Sizes | None Available |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | None Available |
| Upper Landing Gate | None Available |
| Upper Access Ramp | Automatic Folding |
| Lower Access Ramp | Automatic Folding |
| Grab Rail | Optional |
| Guard Panel | None Available |
| Maximum Stops | 2 |
-
Lifting Height
- 52" Maximum Lift Height: +$0.00
- 52" Maximum Lift Height: +$0.00
-
Tower Orientation
- Tower On The Right: +$0.00
- Tower On The Right: +$0.00
-
Power Source
- AC Powered: +$0.00
- AC Powered with DC Battery Backup (Batteries Not Included): +$1,357.15
- AC Powered: +$0.00
-
Platform Size
- 34" x 54" Platform: +$0.00
- 34" x 54" Platform: +$0.00
-
Platform Access
- Straight Through: +$0.00
- Straight Through: +$0.00
-
Platform Gate
- No Platform Gate: +$0.00
- No Platform Gate: +$0.00
-
Platform Controls
- Paddle Controls with Emergency Stop Button: +$0.00
- Paddle Controls with Emergency Stop Button: +$0.00
-
Platform Control Options
- Keylock for Platform Controls: +$0.00
- Keylock for Platform Controls: +$0.00
-
Platform Options
- Automatic Ramp for Ground to Platform Transition: +$0.00
- Automatic Ramp for Platform to Landing Transition: +$0.00
- Automatic Ramp for Ground to Platform Transition: +$0.00
-
Accessories
- Portable Package: +$0.00
- Batteries for Backup System: +$245.00
- Portable Package: +$0.00
-
Additional Delivery Services
- Trucking Terminal or Commercial Location with Loading Dock: +$0.00
- Liftgate Delivery: +$279.00
- Limited Access Delivery Charge: +$109.00
- AK, HI, PR, or International - Please Call for Quote: +$0.00
- Trucking Terminal or Commercial Location with Loading Dock: +$0.00
