AmeriGlide Hercules II Vertical Platform Lift - Reconditioned Residential
Model: HERC2-RES-RECON
Regular Price: $4,589.00
$3,439.00
Plus Shipping
The AmeriGlide Hercules II Reconditioned Residential offers an incredibly low price and comes with a 30 day parts warranty. It has a 600-pound weight capacity and has a 53" lifting height (heights up to 171" available). It's built to meet ASME A18.1, Section 5 and CSA B44.1 / ASME 17.5 safety design standards.
| Lifting Capacity | 600 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 171" |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Acme Screw Drive |
| Optional Drive Systems | None Available |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional Non-Keyed & Keyed Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 48" Platform (34" Usable Width) |
| Optional Platform Sizes | 36" x 54", 36" x 60", 42" x 54" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Automatic Folding, Optional Fixed |
| Grab Rail | Included |
| Guard Panel | 36", Optional 42" |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 10 |
-
Lifting Height
- 53" Max Lift Height, Acme Screw Drive: +$0.00
- 77" Max Lift Height, Acme Screw Drive: +$660.00
- 101" Max Lift Height, Acme Screw Drive: +$1,680.00
- 125" Max Lift Height, Acme Screw Drive: +$3,150.00
- 149" Max Lift Height, Ball Screw Drive: +$4,780.00
- 171" Max Lift Height, Ball Screw Drive: +$6,040.00
- 53" Max Lift Height, Acme Screw Drive: +$0.00
-
Crating & Assembly
- No Crating - Some assembly is required.: +$0.00
- 36" x 48" or 36" x 54" Platform: +$0.00
- 53" Unit Shipped Crated & Fully Assembled: +$462.00
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate: +$0.00
- 53" Unit Shipped Crated & Fully Assembled: +$691.00
- No Crating - Some assembly is required.: +$0.00
-
Tower Orientation
- Tower On The Left: +$0.00
- Tower On The Right: +$0.00
- Tower On The Left: +$0.00
-
Power Source
- AC Powered: +$0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.: +$999.00
- AC Powered: +$0.00
-
Electronics
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.: +$0.00
- Standard Electronics Control Board: +$0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.: +$0.00
- 42" high side walls require a Commercial Electronics Control Board: +$0.00
- Commercial Electronics Control Board: +$309.00
- Ball Screw Drive Models Include A Commercial Electronics Control Board: +$0.00
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.: +$0.00
-
Portable Package
- None: +$0.00
- Portable Package
53" or 77" Max Lift Height
36" x 54" Straight Thru Platform
Platform Gate On Exit Side Included: +$1,614.00
- Portable Package also includes an Automatic Ramp and Safety Pan: +$0.00
- None: +$0.00
-
Platform Type
- 36" x 48" Straight Thru (34" Usable Width): +$0.00
- 36" x 54" Straight Thru (34" Usable Width): +$154.00
- 36" x 60" Straight Thru (34" Usable Width): +$246.00
- 42" x 54" Straight Thru (40" Usable Width): +$492.00
- 36" x 54" 90 Degree (34" Usable Width): +$369.00
- 36" x 60" 90 Degree (34" Usable Width): +$491.00
- 42" x 54" 90 Degree (40" Usable Width): +$738.00
- 36" x 48" Straight Thru (34" Usable Width): +$0.00
-
Platform Access
- Straight Thru or 90 Degree: +$0.00
- Same Side Entry & Exit - Lift height must be 101" or greater.: +$368.00
- Straight Thru or 90 Degree: +$0.00
-
Platform Gate
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.: +$0.00
- Platform gates require 42" high side walls (found below).: +$0.00
- No Platform Gate: +$0.00
- Left Swing 36" Wide Straight Thru Platform Gate with Interlock: +$614.00
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock: +$614.00
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock: +$862.00
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock: +$862.00
- Left Swing 90 Degree Platform Gate with Interlock: +$984.00
- Right Swing 90 Degree Platform Gate with Interlock: +$984.00
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.: +$0.00
-
Platform Controls
- Paddle Controls with Emergency Stop Button: +$0.00
- Paddle Controls with Emergency Stop Button: +$0.00
-
Platform Control Options
- Emergency Alarm & Lighted Button: +$208.00

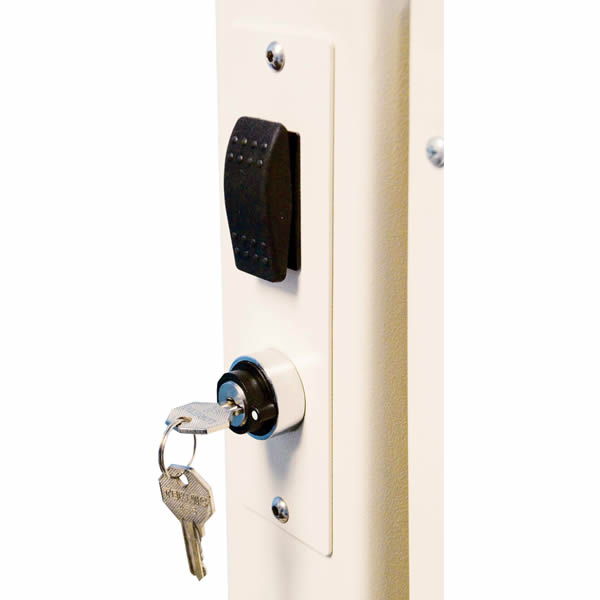

- Keylocks for Controls: +$34.00
- Emergency Alarm & Lighted Button: +$208.00
-
Platform Options
- Solid Platform with Safety Pan: +$0.00
- Inside Grab Bar: +$0.00
- 42" high side walls are required for lifts 8' and taller.: +$0.00
- 42" high side walls are required for ANY lift with a platform gate.: +$0.00
- 36" High Side Walls: +$0.00
- 42" High Side Walls: +$153.00
- 42" high side walls require a Commercial Electronics Control Board: +$0.00
- Solid Platform with Safety Pan: +$0.00
-
Ramp Type & Pit Switch
- Automatic Ramp: +$0.00
- Fixed Ramp: +$0.00
- No Ramp with Pit Switch Option: +$122.00
- Automatic Ramp: +$0.00
-
Landing Controls
- Call/Send Control Station (each): +$119.00
- Wireless Call/Send Control Stations (pair): +$479.00
- Keylocks for Controls (each): +$34.00
- Call/Send Control Station (each): +$119.00
-
Landing Gate
- Landing gates below include an interlock and a call/send control built into the gate.: +$0.00
- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each): +$809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each): +$809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each): +$979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each): +$979.00
- Keylocks for Controls (each): +$34.00
- Landing gates below include an interlock only.: +$0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each): +$739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each): +$739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each): +$909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each): +$909.00
- Keylocks for Controls (each): +$34.00
- Landing gates below include an interlock and a call/send control built into the gate.: +$0.00
-
Fire Rated Doors
- No Door: +$0.00
- Fire-Rated Hoistway Door with EMI - Left (each): +$2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each): +$2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each): +$2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each): +$2,219.00
- No Door: +$0.00
-
Interlocks
- Surface mount EMI interlocks below are for a customer provided door or gate.: +$0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each): +$409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each): +$409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate.: +$0.00
- Top Landing Electric Strike Interlock - Metal Frame (each): +$409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each): +$409.00
- Top Landing Electric Strike Interlock - Wood Frame (each): +$409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each): +$409.00
- Other Interlock Options: +$0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each): +$139.00
- Wiring For Interlock (per landing): +$159.00
- Surface mount EMI interlocks below are for a customer provided door or gate.: +$0.00
-
Accessories
- Anchor Bolt Kit: +$0.00
- Tower Braces: +$154.00
- 3rd Stop Wiring Charge: +$492.00
- Phone Jack: +$137.00
- Emergency Light: +$138.00
- Fascia Panel (per foot): +$59.00
- Automatic Door Opener - Requires Upgraded Electronics: +$2,349.00
- Anchor Bolt Kit: +$0.00
-
Additional Delivery Services
- Free Liftgate Service on 53" Units As Requested: +$0.00
- Free Liftgate Service on 53" Units As Requested: +$0.00
