click picture to enlarge
Regular Price: $3,999.00
$2,149.00
Plus Shipping

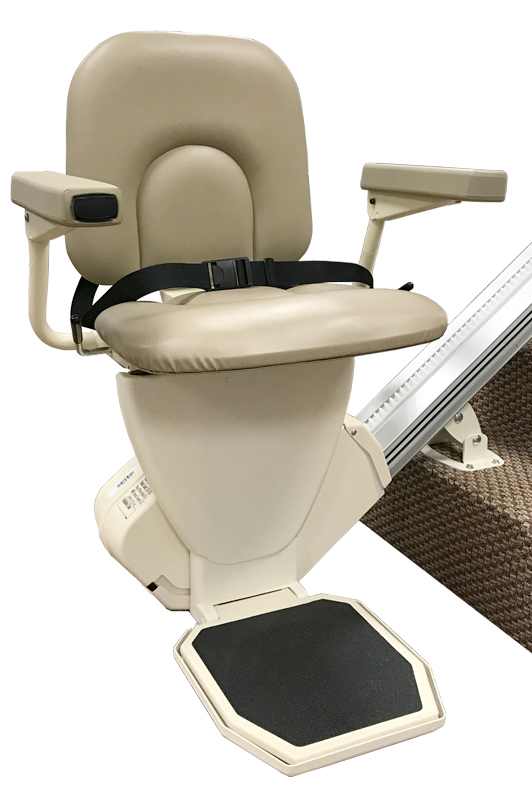

The AmeriGlide Rave is for people trying to maximize their stairway space. Its ultra-thin design is great for homes with narrow stairs. When the swivel chair is folded up, the lift sticks out only about 11 inches from the wall. The Rave is fitted with a powerful rack and pinion drive system that has a weight capacity of 350 pounds. Installation is easy with the Rave, so it makes things much easier on you and the installer. Electric Wheelchairs 101 has the low price guarantee so you know you're getting the lowest price anywhere.
| Drive Type | Rack & Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 32' |
| Track Material | Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Unit Footprint, In Use | 22.5" |
| Unit Footprint, Folded | 10" |
| Track Footprint | 7" |
| Warranty | A 5-year period on all component parts of the lift, and a 10-year period on the motor and gear. |
| Track Width | 4.875" |
| Call Stations Included | Yes - Wireless |
-
Seat Style
- Soft Vinyl Seat - Taupe: +$0.00
- Soft Vinyl Seat - Taupe: +$0.00
-
Track Length
- Up to 16' of track: +$0.00
- Extra Track, Per Foot, Up To 16' Extra: +$50.00
- Up to 16' of track: +$0.00
-
Options
- Seat Belt: +$0.00
- Seat Belt: +$0.00
-
Call Stations
- Top & Bottom Call-Send Stations: +$0.00
- Top & Bottom Call-Send Stations: +$0.00
-
Orientation (looking UP the staircase)
- The stair lift will be on the left: +$0.00
- The stair lift will be on the right: +$0.00
- The stair lift will be on the left: +$0.00
-
Installation
- Self Installation: +$0.00
- Nationwide Installation: +$575.00
- Nationwide Installation and Measurement Service: +$725.00
- Self Installation: +$0.00
-
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Installation In Remote or Limited Access Location: +$285.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
-
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
- 1. Overall length: +$0.00
- 2. Top stair to bottom stair: +$0.00
- 3. Staircase width: +$0.00
- 4. Bottom clearance: +$0.00
- 5. Rise of one step: +$0.00
- 6. Tread of one step: +$0.00
- 7. Diagonal: +$0.00
- 8. Door at the top: +$0.00
- Need help measuring? Print out the "How to Measure" worksheet.: +$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
This product currently has no reviews. Would you like to leave one?
