The seat and footrest are easily folded, giving more space when the Infinity is not in use.

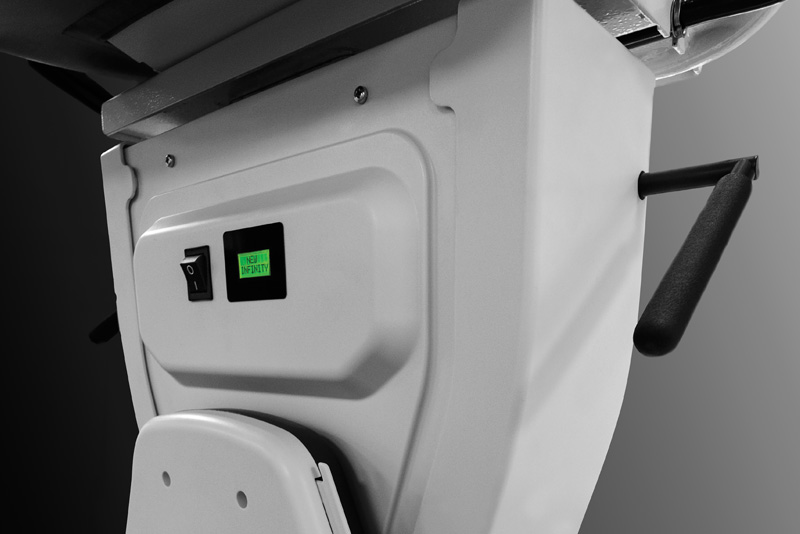

With the digital diagnostic display as standard, the status of the Infinity stairlift is easy to follow with clear, backlit text.
This stair lift must be installed by trained installers. It is not user installable.
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | No |
| Basic Installation Included | Yes |
| Standard Capacity | 275 lb |
| Swivel Seat | Yes |
| Swivel Seat Rotation | 80 Degrees |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Seat Width | 23.9" |
| Seat Depth | 15.2" |
| Unit Footprint, In Use | 24.5" |
| Unit Footprint, Folded | 16" |
| Warranty | 2 Years |
| Digital Diagnostics Display | Yes |
| Key Lock | Yes |
Weight Capacity
- Standard (275 lbs capacity): +$0.00
- Heavy Duty (350 lbs capacity): +$1,499.00
- Standard (275 lbs capacity): +$0.00
Seat Color
- Beige (Standard): +$0.00
- Red: +$399.00
- Blue: +$399.00
- Grey: +$399.00
- Brown: +$399.00
- Beige (Standard): +$0.00
Optional Seat Features
- Wireless Radio Call/Send Remote: +$0.00
- Retractable Seatbelt: +$0.00
- Powered Swivel: +$675.00
- Extra Parking Call/Send Remote: +$199.00
- Wireless Radio Call/Send Remote: +$0.00
Additional Track and Bends
- Additional Standard Rail per yard (Unit Includes 16.4'): +$279.00
- Additional Heavy Duty Rail per yard (Unit Includes 16.4'): +$399.00
- Base Unit Includes One 90 degree Bend: +$0.00
- Additional 90 Degree Bend (each): +$699.00
- Additional 180 Degree Bend (each): +$1,099.00
- Additional Special Bend (each): +$999.00
- Additional Standard Rail per yard (Unit Includes 16.4'): +$279.00
Top Landing Options
- Standard Top Landing: +$0.00
- Top Over-Run Landing: +$339.00
- Standard Top Landing: +$0.00
Bottom Landing Options
- Standard Bottom Landing: +$0.00
- Bottom Over-Run Landing: +$339.00
- Drop Nose: +$420.00
- Standard Bottom Landing: +$0.00
Additional Rail Features
- Intermediate Landing: +$499.00
- Additional Charge Point: +$135.00
- Brown Color on Rail (RAL8011): +$349.00
- Leg Covers: +$6.50
- Wall Brackets: +$45.00
- Intermediate Landing: +$499.00
Installation
- Measurement and Installation: +$1,275.00
- Stair Lift Removal Service: +$499.00
- License / Permit / Inspection: +$425.00
- Permit (Required in Kentucky for EACH item being installed): +$87.50
- CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled: +$0.00
- Measurement and Installation: +$1,275.00
Installation Location Question
- Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?: +$0.00
- Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?: +$0.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs is available.: +$460.00
- Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.: +$0.00
- Installation On Concrete, Steel, or Tile Stairs is available.: +$460.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
