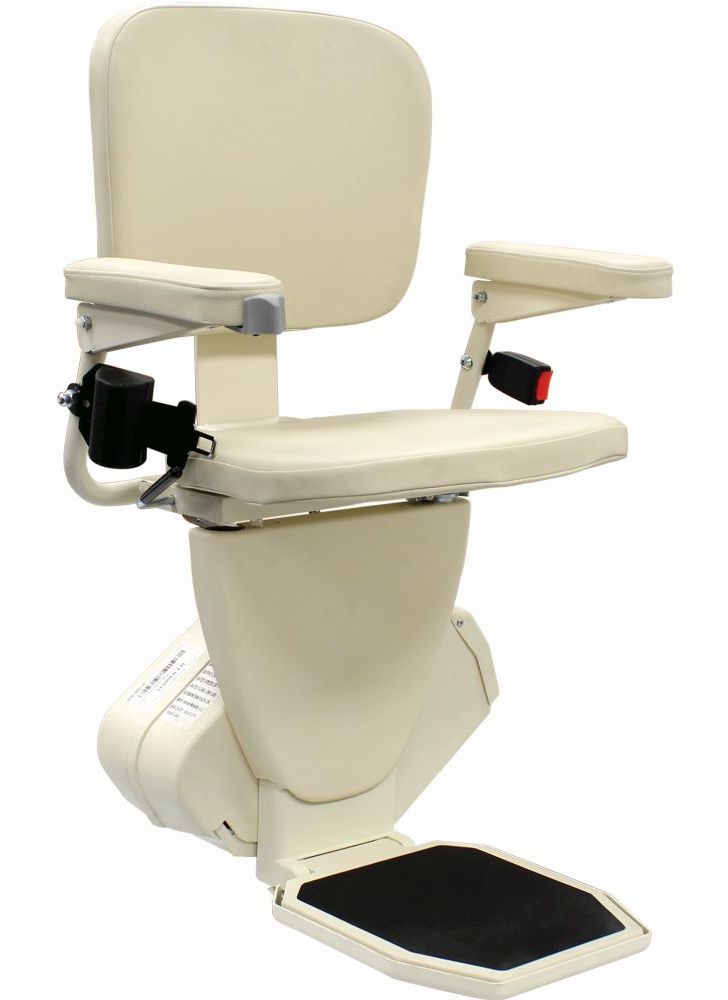

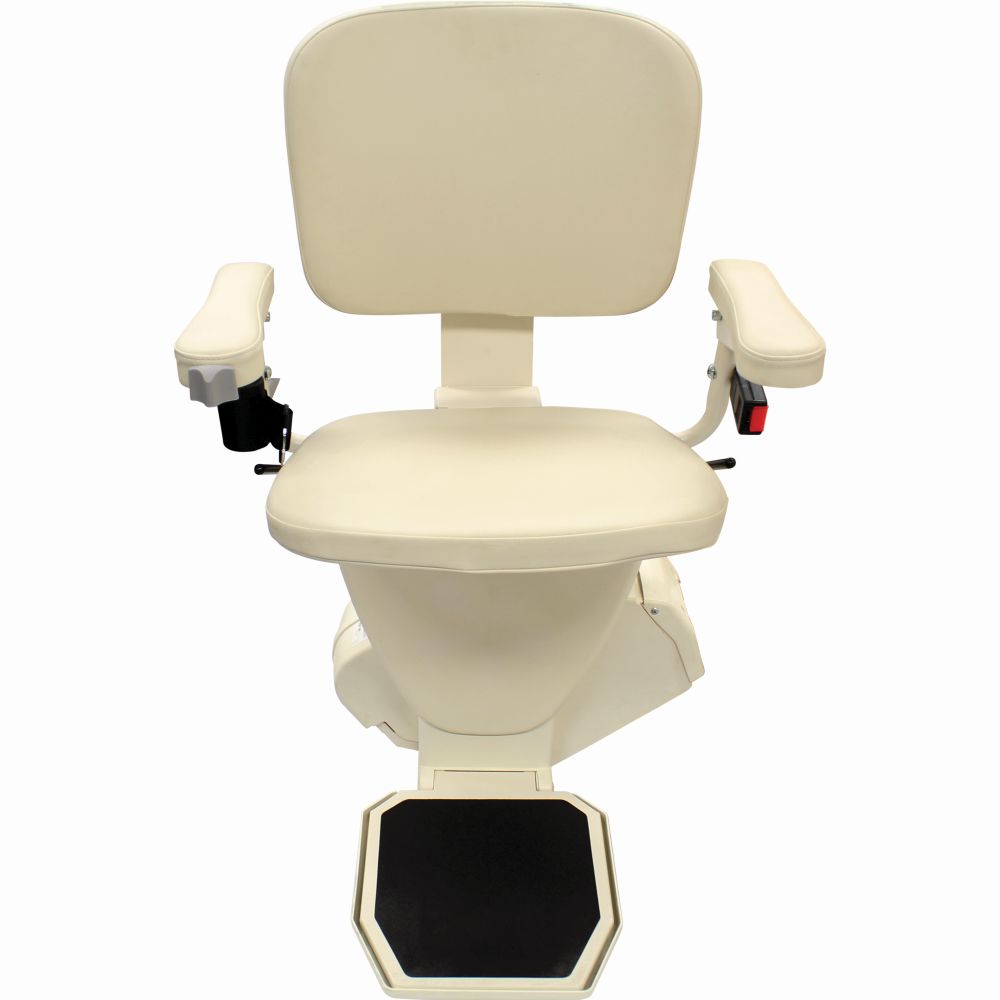

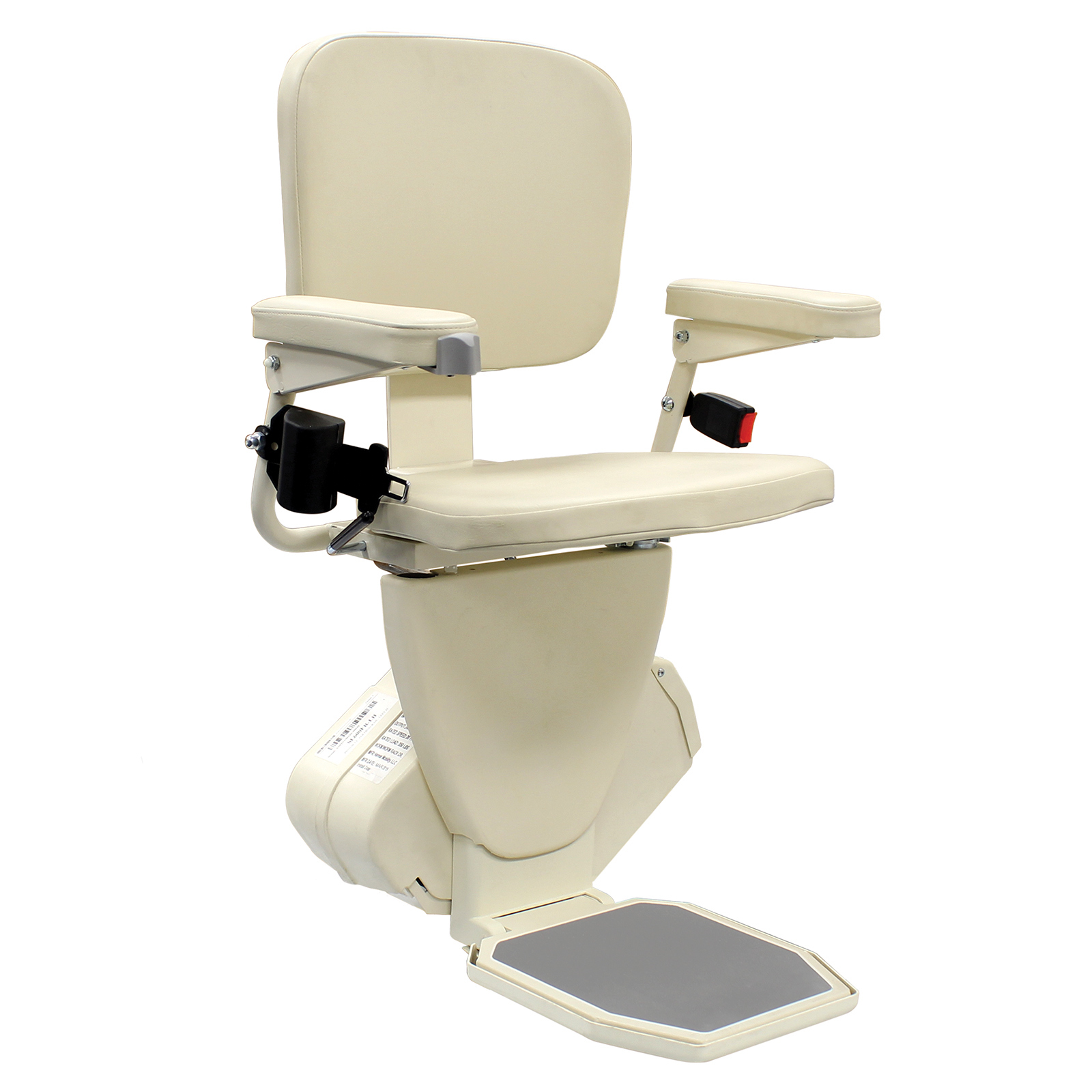

The AmeriGlide Rave is an ultra-compact stair lift designed to make restoring accessibility to your multi-level home as convenient and easy as possible! Homeowners with exceptionally narrow stair cases will love the ultra-thin design of this stair lift. The lift unit takes up only slightly more than 11 inches when folded, allowing able-bodied housemates and guests optimal access to the stairs. The AmeriGlide Rave is built for durability, with a tough all-metal case construction that withstands normal wear-and-tear far better than other comparable stair lift brands. The powerful worm-rack system can safely transport up to 350 pounds of user weight, and an adjustable-height padded seat with durable folding arms ensures that you will remain comfortable during transit - the seat measures in at 19.5 inches wide and 14 inches deep.

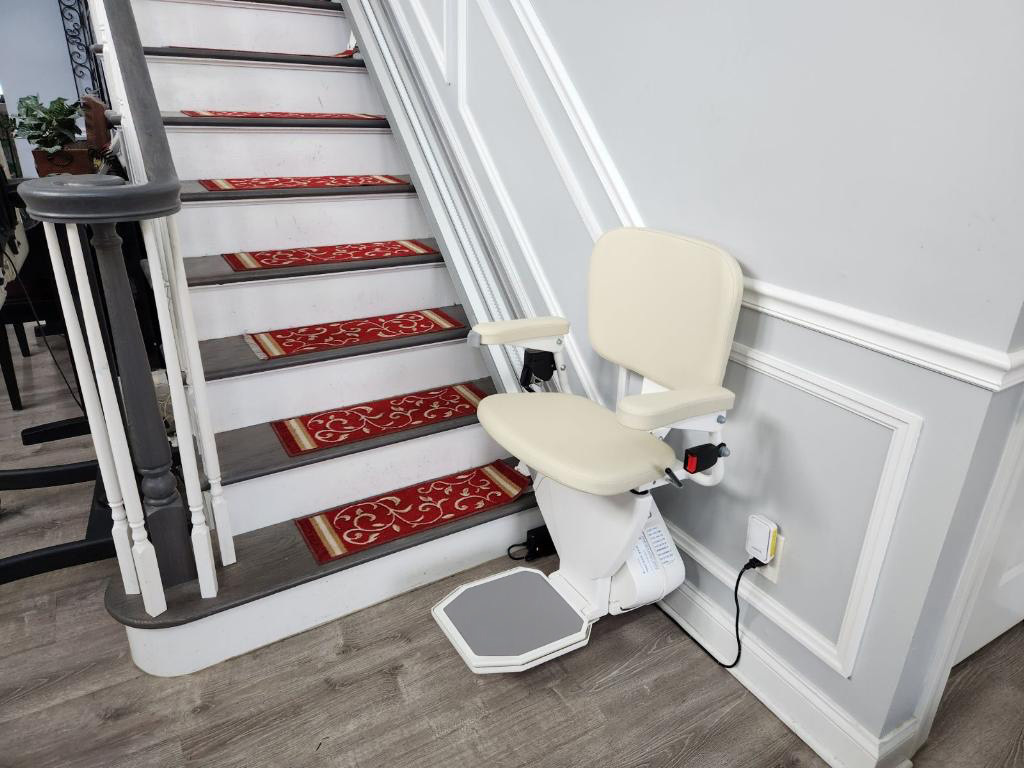

The AmeriGlide Rave differs from many of our competitors' stair lift units in that the track attaches to the stairs themselves rather than the wall, and every point of contact uses a single bracket, making installation easier on homeowners and handymen. The Rave is compatible with any standard household power outlet, and the battery that powers the unit charges at the top or bottom of the track, providing a reserve of power that keeps your stair lift going even in the event of a power outage. An arm-mounted operation switch is included as a standard feature, along with AmeriGlide's standard array of safety switches that prevent the lift from operating if an obstruction blocks your path. The seat swivels at the top, away from the steps, so the rider can safely exit or enter the stair lift.
Best of all, the AmeriGlide Rave lifts are assembled in the USA, which means quality you can depend on.
Stair lift users need a unit that is safe, comfortable, reliable, and easy to install. The AmeriGlide Rave satisfies all of your needs. To order, contact our mobility specialists today!
| Drive Type | Polymer Worm / Worm-Rack |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 70' |
| Track Material | Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Seat Width | 19.5" |
| Unit Footprint, In Use | 22.5" |
| Unit Footprint, Folded | 11" |
| Track Footprint | 7" |

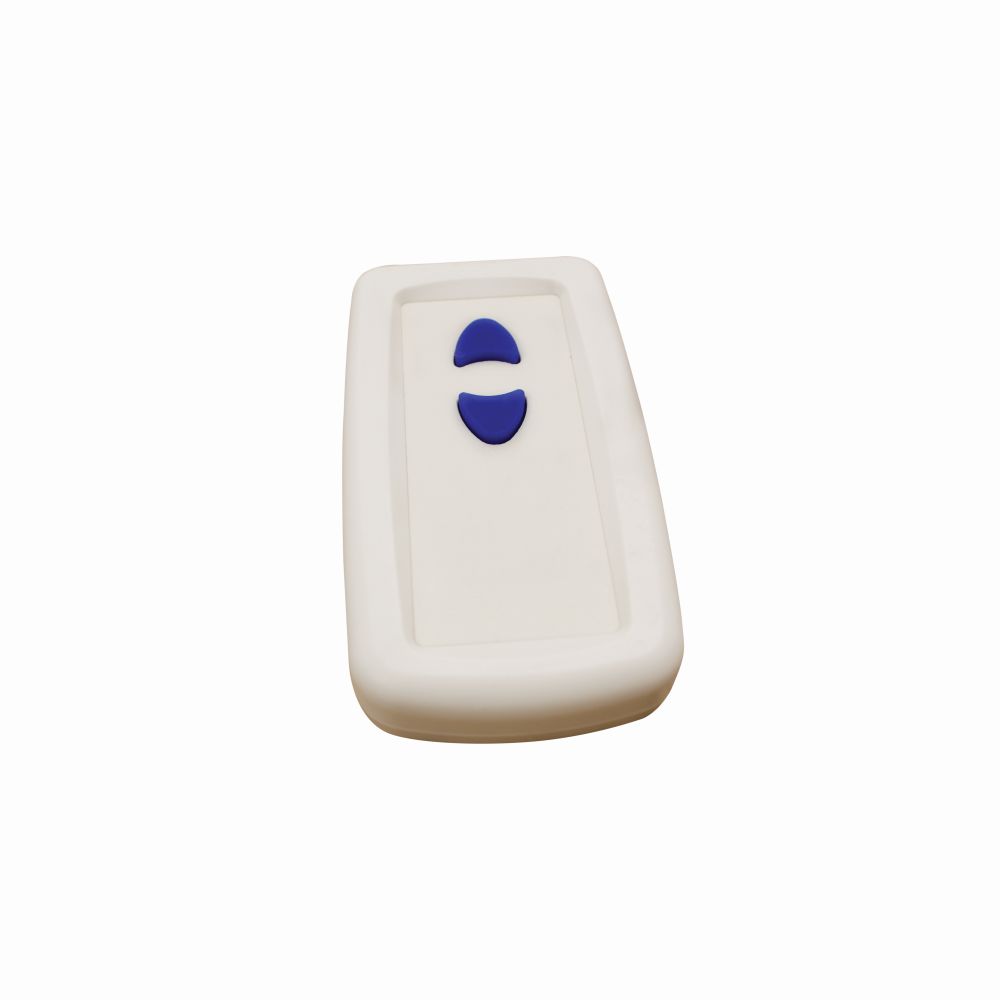

| Call Stations Included | Yes - Wireless |
| Track Width | 4.875" |
| Digital Diagnostics Display | No |
| Power Cord Lengths | 10' with the charger box in the middle |
| Key Lock | Yes |
Seat Style
- Soft Vinyl Seat, Taupe - Swivels At The Top Stop Only: +$0.00
- Soft Vinyl Seat, Taupe - Swivels At The Top Stop Only: +$0.00
Track Lengths Selection: 15' (180") is Standard *
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
- 15' (180") of Track: +$0.00
- Length in inches if Shorter than 180" (allow +6" for entry/exit): +$0.00
- Custom Cut Charge in Factory (for shorter than 15'): +$90.00
- Custom Cut On Site Custom Cut On Site (You must select Installation below also): +$145.00
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
Additional Track (Maximum 70' Including the 15' Standard Track)
- 3' of Additional Track: +$411.00
- 5' of Additional Track: +$571.00
- 7'9" (93") of Additional Track: +$816.00
- Custom Pre-Cut Length (in inches) (this is just the cut, you must also select track above): +$0.00
- Custom Cut Charge in Factory (cut only) (you must also select track above): +$90.00
- Custom Cut On Site (this is just the cut, you must also select track above)(You must select Installation below also): +$145.00
- 3' of Additional Track: +$411.00
Bracket Length
- Standard: +$0.00
- Tall: +$99.00
- Standard: +$0.00
Options
- Seat Belt: +$0.00
- Key Lock: +$164.00
- Power Swivel / Power Footrest: +$1,499.00
- Folding Rail - Left: +$1,595.00
- Folding Rail - Right: +$1,595.00
- Seat Belt: +$0.00
Call Stations
- Top & Bottom Call-Send Stations: +$0.00
- Top & Bottom Call-Send Stations: +$0.00
Orientation (looking UP the staircase)
- The stair lift will be on the left: +$0.00
- The stair lift will be on the right: +$0.00
- The stair lift will be on the left: +$0.00
Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout: +$0.00
- Self Installation: +$0.00
- Nationwide Installation: +$599.00
- Nationwide Installation and Measurement Service: +$749.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout: +$0.00
Installation Permit
- Permit (Required in Kentucky for EACH item being installed): +$87.50
- Permit & Inspection (Required in Georgia. Additional units incur additional fee.): +$250.00
- Permit & Inspection (Required in Alabama. Additional units incur additional fee.): +$300.00
- Permit (Required in Kentucky for EACH item being installed): +$87.50
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Installation In Remote or Limited Access Location: +$345.00
- Existing Stair Lift Removal: +$499.00
- Additional Charge for Installation in the States of: New York, Massachusetts, and Illinois: +$150.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
- 1. Overall length: +$0.00
- 2. Top stair to bottom stair: +$0.00
- 3. Staircase width: +$0.00
- 4. Bottom clearance: +$0.00
- 5. Rise of one step: +$0.00
- 6. Tread of one step: +$0.00
- 7. Diagonal: +$0.00
- 8. Door at the top: +$0.00
- Need help measuring? Print out the "How to Measure" worksheet.: +$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
Warehouse Pickup
- Pickup Unit from Raleigh Warehouse: +$19.99
- Pickup Unit from Raleigh Warehouse: +$19.99
