Regular Price:
$2,995.00
Plus Shipping
1 year on batteries
2 years on parts
5 years on drive train, motor and circuit board
2 years on parts
5 years on drive train, motor and circuit board

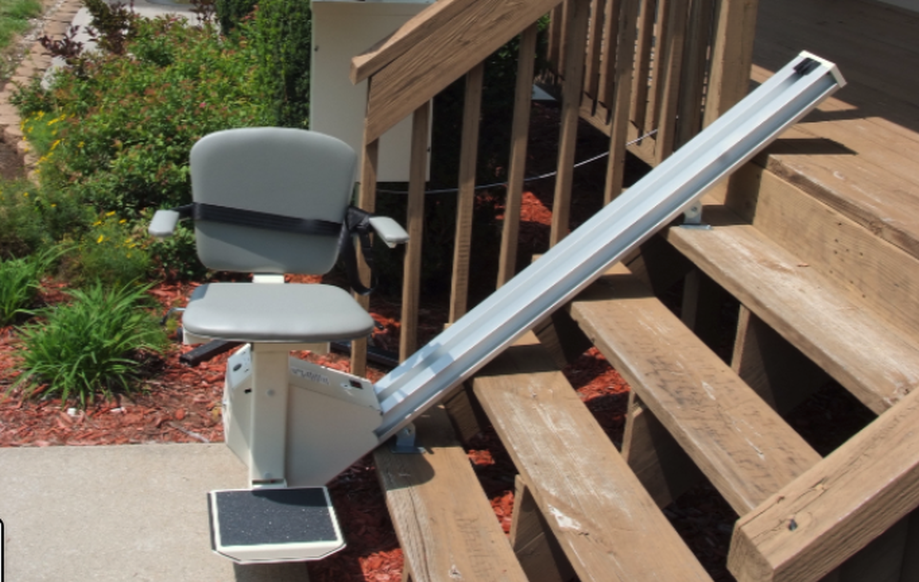

The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1

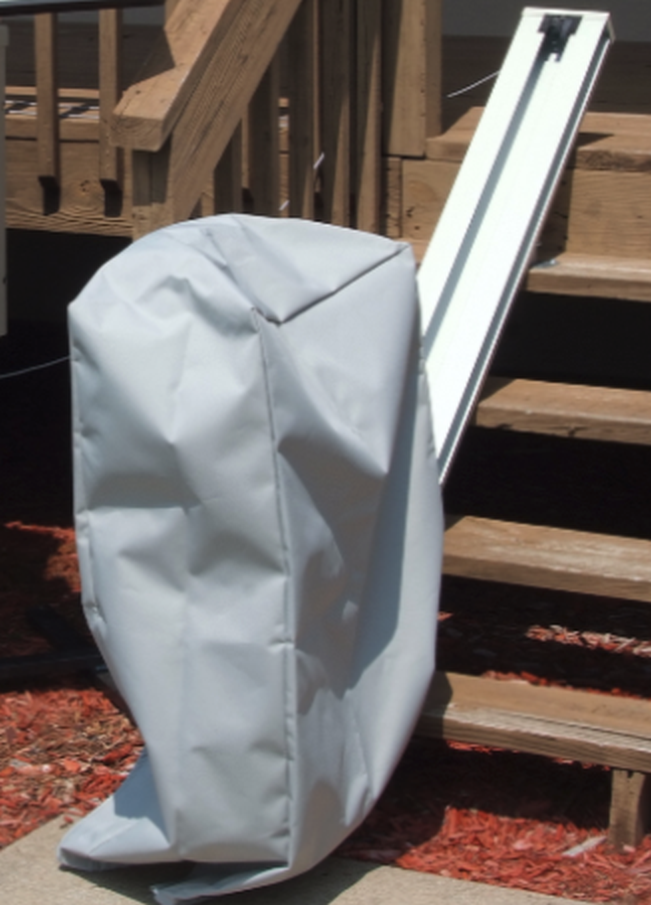

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

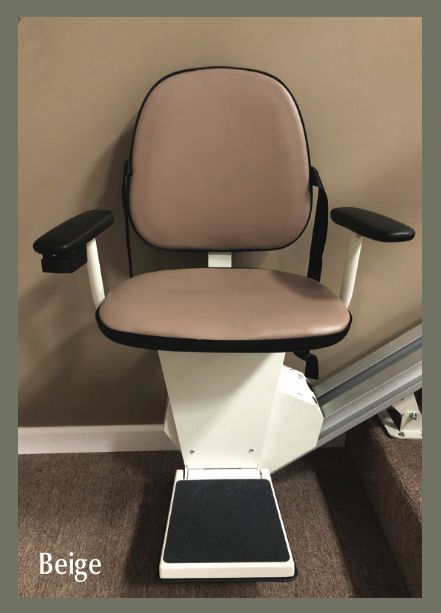

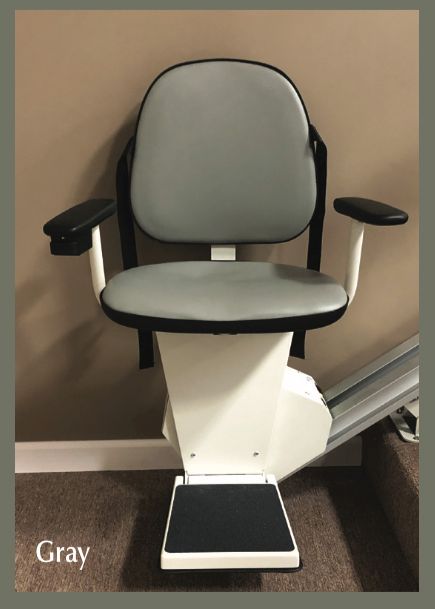

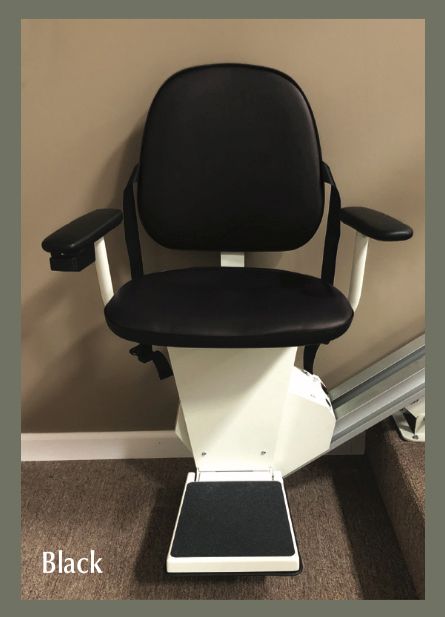

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15' |
| Track Material | Anodized Aluminum |
| Swivel Seat | Yes |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board |
| Call Stations Included | 2 |
| Track Width | 6.5" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Stair Lift Orientation
- Right: +$0.00
- Left: +$0.00

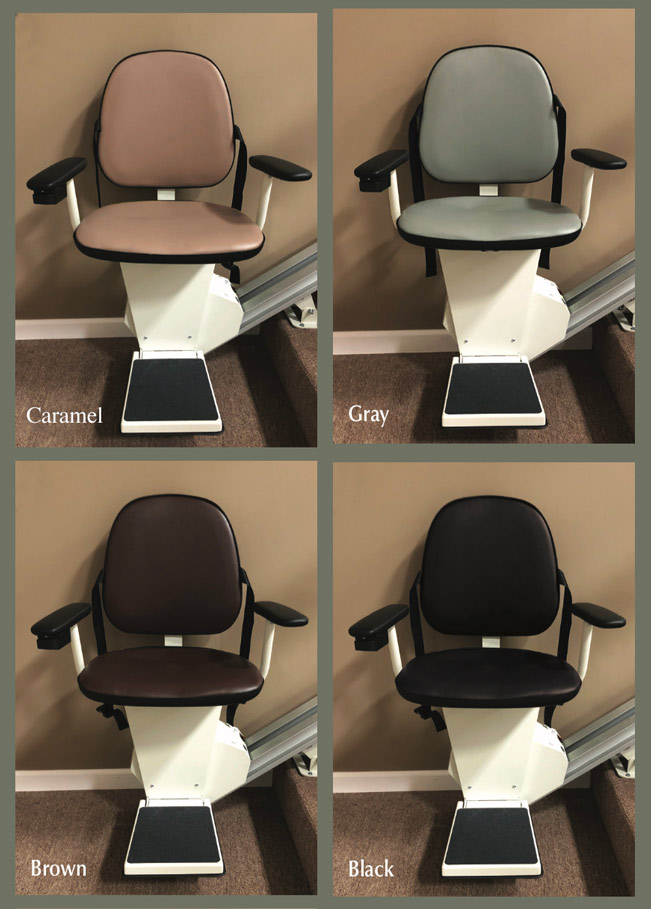

Upholstery Color
- Black: +$0.00
- Walnut: +$0.00
- Caramel: +$0.00
- Gray: +$0.00
- Black: +$0.00
Seat Width
- Standard: +$0.00
- Arms Extended 2" on Either Side: +$230.00
Chassis / Track Custom Color
- Chassis Custom Color: +$1,847.00
- RAL Color for Chassis Powder Coat: +$0.00
- Track Custom Color: +$1,154.00
- RAL Color for Track Powder Coat: +$0.00
Track Length
- Standard 15' Of Track: +$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost): +$77.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length: +$0.00
- Step 2 - Top Landing to Bottom Step: +$0.00
- Step 3 - Stair Width: +$0.00
- Step 4 - Available Space at Bottom: +$0.00
- Step 5 - Height of One Step: +$0.00
- Step 6 - Length of One Tread: +$0.00
- Step 7 - One Step Front Edge to Front Edge: +$0.00
- Step 8 - Available Space at Top: +$0.00
Options

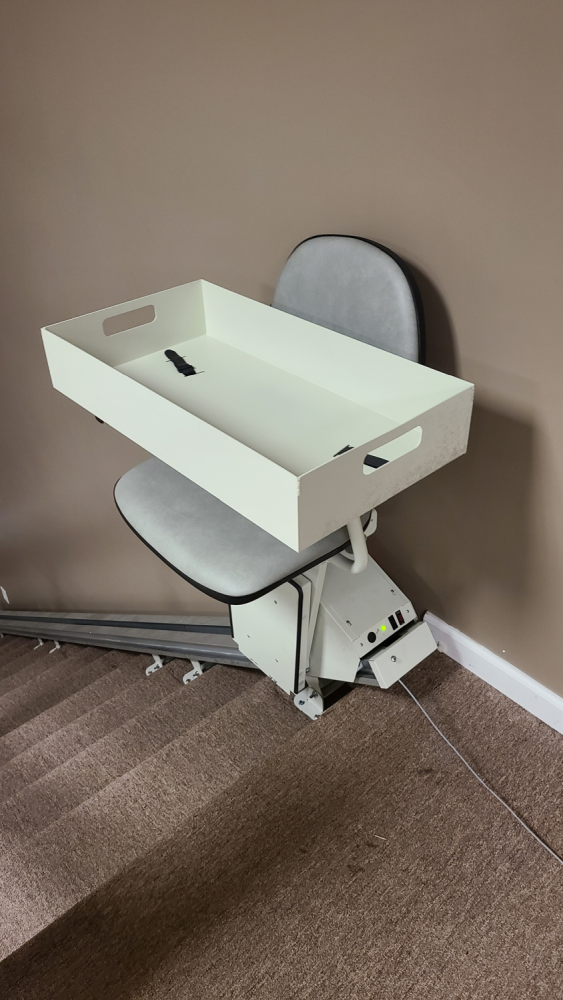

- Cargo Tray Add-On: +$285.00
- Wall Mounted Call/Send Controls (set): +$154.00
- Additional Key Fob Remote: +$77.00
- Additional Standard Brackets: +$38.00
- Tall Brackets: +$54.00
- Extra Splice Bar: +$23.00
- Key Switch: +$77.00
- Lockable Battery Disconnect: +$77.00
- Bluetooth Controller: +$124.00
- Solar Power Unit: +$1,847.00
- Cargo Tray Add-On: +$285.00
Installation
- Self-Install: +$0.00
- Nationwide Installation Service: +$599.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- Nationwide Measurement and Installation: +$749.00
Installation Special Cases
- Installation In Remote or Limited Access Location: +$345.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts: +$150.00
- Existing Stair Lift Removal: +$499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track: +$154.00
- Shipping to Alaska or Hawaii (Call for Price): +$0.00
