Regular Price:
$1,995.00
Plus Shipping
Quick Ship Product
2 years on batteries
Lifetime on all parts for the original purchaser
Labor and Shipping of Warranty Parts are not covered in the warranty.
Lifetime on all parts for the original purchaser
Labor and Shipping of Warranty Parts are not covered in the warranty.

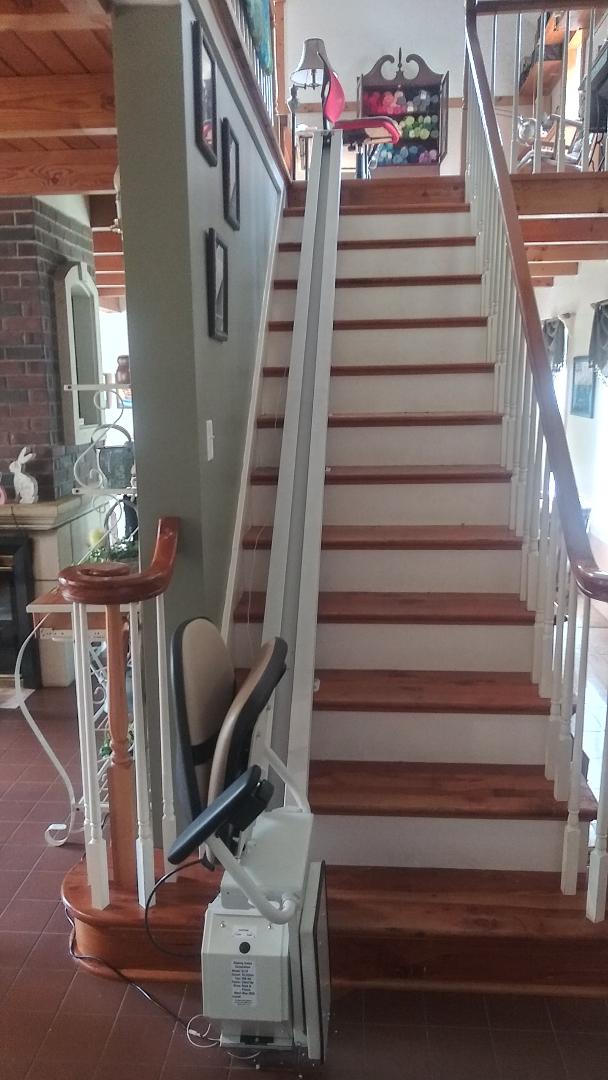

The Crest HD Stair Lift comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 14'5" track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail
- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- 350 lbs capacity
- Overspeed governor
- Proudly made in the USA!
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 14.4' |
| Track Material | Anodized Aluminum |
| Swivel Seat | Yes |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 2 years on batteries / Lifetime on all parts for the original purchaser |
| Call Stations Included | 2 |
| Track Width | 6.5" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Stair Lift Orientation
- Right: +$0.00
- Left: +$0.00
- Right: +$0.00

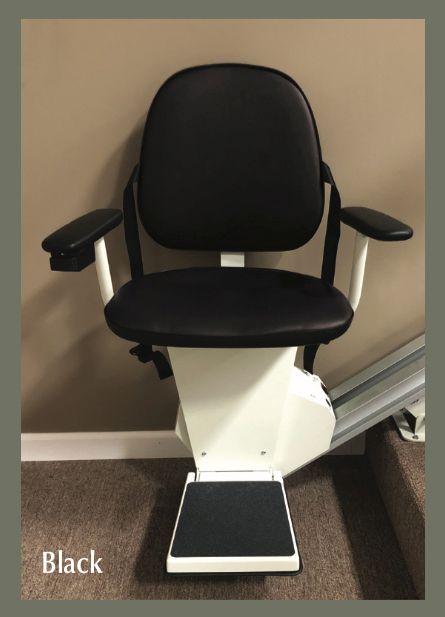

Upholstery Color
- Black: +$0.00
- Brown: +$0.00
- Beige: +$0.00
- Gray: +$0.00
- Black: +$0.00
Seat Width
- Standard: +$0.00
- Arms Extended 2" on Either Side: +$230.00
- Standard: +$0.00
Chassis / Track Custom Color
- Chassis Custom Color: +$310.00
- RAL Color for Chassis Powder Coat: +$0.00
- Track Custom Color: +$462.00
- RAL Color for Track Powder Coat: +$0.00
- Chassis Custom Color: +$310.00
Track Length
- Standard 14'5" Of Track: +$0.00
- Additional Track (Per Foot): +$55.00
- Standard 14'5" Of Track: +$0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length: +$0.00
- Step 2 - Top Landing to Bottom Step: +$0.00
- Step 3 - Stair Width: +$0.00
- Step 4 - Available Space at Bottom: +$0.00
- Step 5 - Height of One Step: +$0.00
- Step 6 - Length of One Tread: +$0.00
- Step 7 - One Step Front Edge to Front Edge: +$0.00
- Step 8 - Available Space at Top: +$0.00
- Step 1 - Total Staircase Length: +$0.00
Options
- Cargo Tray Add-On: +$230.00
- Tall Brackets: +$39.00
- Key Switch: +$77.00
- Cargo Tray Add-On: +$230.00
Installation
- Self-Install: +$0.00
- Nationwide Installation Service: +$599.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- Nationwide Measurement and Installation: +$749.00
- Stair Lift Removal and Disposal: +$499.00
- Self-Install: +$0.00
Installation Special Cases
- Installation In Remote or Limited Access Location: +$345.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Installation In Remote or Limited Access Location: +$345.00
Shipping
- Additional Shipping Charge for Unit with More Than 15' of Track: +$100.00
- Shipping to Alaska or Hawaii (Call for Price): +$0.00
- Additional Shipping Charge for Unit with More Than 15' of Track: +$100.00
