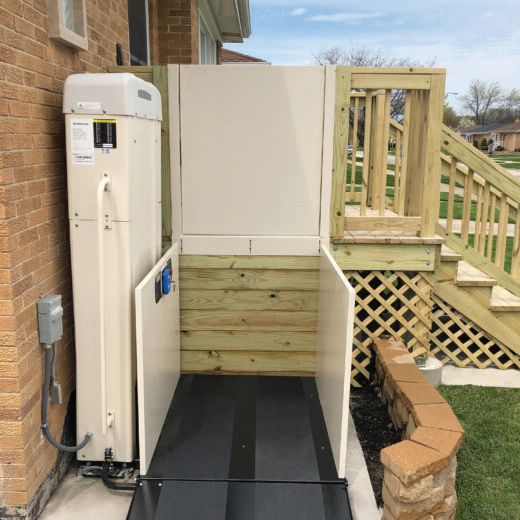

The Crest 400-X VPL is a value hard to find in Vertical Platform Lifts.
The Crest 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
The Crest 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.
Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 53" |
| Arrives Assembled | Yes |
| Drive System | Acme Screw Drive |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Platform Size | 36" x 48" (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) |
| Platform Configuration | Straight-Thru Access |
| Guard Panel | 36" for 36"x48" Platform, all others 42" |
| Lift Speed (FPM) | 10.4 |
| Portable | No |
Lifting Height
- 53" MAXIMUM LIFT HEIGHT: +$0.00
Application
- Residential: +$0.00
Power Source
- AC POWERED: +$0.00
- DC Powered: +$1,846.00
Use Option
- OUTDOOR USE: +$216.00
Tower Orientation
- TOWER ON THE LEFT: +$0.00
- TOWER ON THE RIGHT: +$0.00
Number of Stops
- 2 STOPS: +$0.00
Hoistway Installation
- INSTALLED IN A HOISTWAY: +$0.00
- NO HOISTWAY: +$0.00
Platform Type (Width, Depth, Height)
- Select From Options Below: +$0.00
- [___________36"_High____________]: +$0.00
- Straight Through (180 Degrees) Requires Folding Ramp: +$0.00
- 36 X 48 X 36 STRAIGHT THROUGH PLATFORM: +$0.00
- [___________42"_High____________]: +$0.00
- Straight Through (180 Degrees): +$0.00
- 36 X 54 X 42 STRAIGHT THROUGH PLATFORM: +$454.00
- 36 X 60 X 42 STRAIGHT THROUGH PLATFORM: +$839.00
- 42 X 54 X 42 STRAIGHT THROUGH PLATFORM: +$931.00
- 42 X 60 X 42 STRAIGHT THROUGH PLATFORM: +$1,047.00
- 90 Degrees (Tower on Left / Right determined by looking into lift from ground level): +$0.00
- 36 X 54 X 42 90 Degree LEFT PLATFORM: +$839.00
- 36 X 54 X 42 90 Degree RIGHT PLATFORM: +$839.00
- 36 X 60 X 42 90 Degree LEFT PLATFORM: +$1,247.00
- 36 X 60 X 42 90 Degree RIGHT PLATFORM: +$1,247.00
- 42 X 54 X 42 90 Degree LEFT PLATFORM: +$1,354.00
- 42 X 54 X 42 90 Degree RIGHT PLATFORM: +$1,354.00
- 42 X 60 X 42 90 Degree LEFT PLATFORM: +$1,454.00
- 42 X 60 X 42 90 Degree RIGHT PLATFORM: +$1,454.00

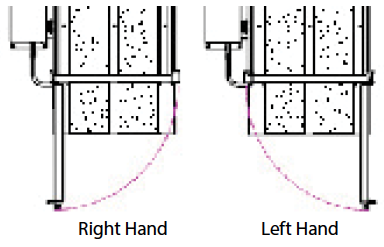

Platform Gate
- 42" High Gates Below not for 36" High Platform: +$0.00
- NO PLATFORM GATE: +$0.00
- 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT: +$1,454.00
- 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT: +$1,454.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT: +$1,700.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT: +$1,700.00
Platform Controls
- Emergency Stop Alarm with Lighted Button: +$177.00
Platform Options
- 54" HANDRAIL [Not applicable for 36x48x36]: +$154.00
- 60" HANDRAIL [Not applicable for 36x48x36]: +$193.00
- Keylocks for Controls: +$108.00
- CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH): +$154.00
Ramp Type
- 36" AUTO-FOLD RAMP [Must Select for 36x48x36 Platform]: +$0.00
- 42" AUTO-FOLD RAMP: +$116.00
- 36" FIXED RAMP: +$0.00
- 42" FIXED RAMP: +$116.00
- Pit, no Ramp (Add Pit Switch): +$262.00
Interlocks
- INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.: +$0.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH: +$585.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH: +$585.00
- OTHER INTERLOCK OPTIONS: +$0.00
- WIRING FOR INTERLOCKS PROVIDED BY OTHERS: +$300.00

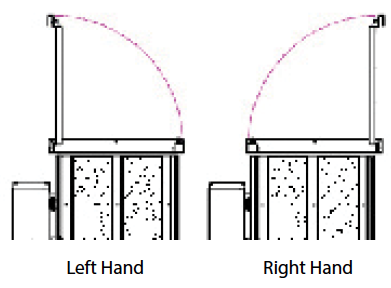

Landing Gate
- 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT: +$1,516.00
- 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT: +$1,516.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT: +$1,700.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT: +$1,700.00
- 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT: +$1,516.00
Landing Gate Call/Send
- CALL-SEND ROCKER SWITCH FOR LANDING GATE: +$136.00
- CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE: +$247.00
Call Send Options
- CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH): +$262.00
- KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH): +$354.00
Fascia Panels
- NO FASCIA PANELS: +$0.00
- FASCIA PANEL; 41" WIDE x 24" TALL: +$116.00
- FASCIA PANEL; 41" WIDE x 53" TALL: +$162.00
- FASCIA PANEL; 47" WIDE x 24" TALL: +$147.00
- FASCIA PANEL; 44" WIDE x 53" TALL: +$231.00
- FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT: +$239.00
- FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT: +$270.00
Additional Options
- TOWER BRACE WITH BRACKET: +$300.00
- EXTRA KEYS (EACH): +$47.00
- FLOAT LEVEL SWITCH: +$262.00
- CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for Availability and Price): +$0.00
