click picture to enlarge
Regular Price: $5,375.00
$4,495.00
Plus Shipping

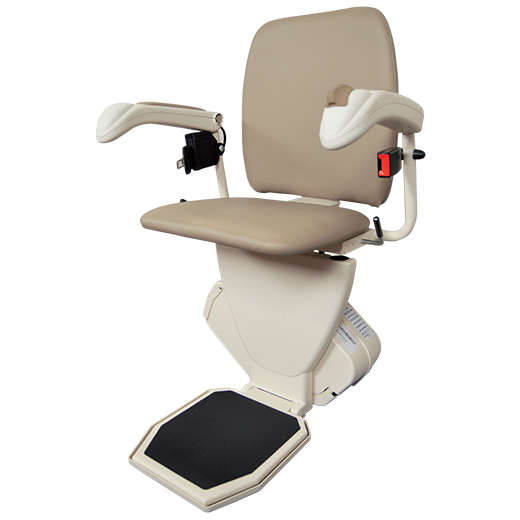

The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
| Drive Type | Polymer Worm / Worm-Rack |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 70' |
| Track Material | Aliuminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Seat Width | 20" |
| Seat Depth | 15.5" |
| Unit Footprint, In Use | 22.5" |
| Unit Footprint, Folded | 11" |
| Track Footprint | 7" |

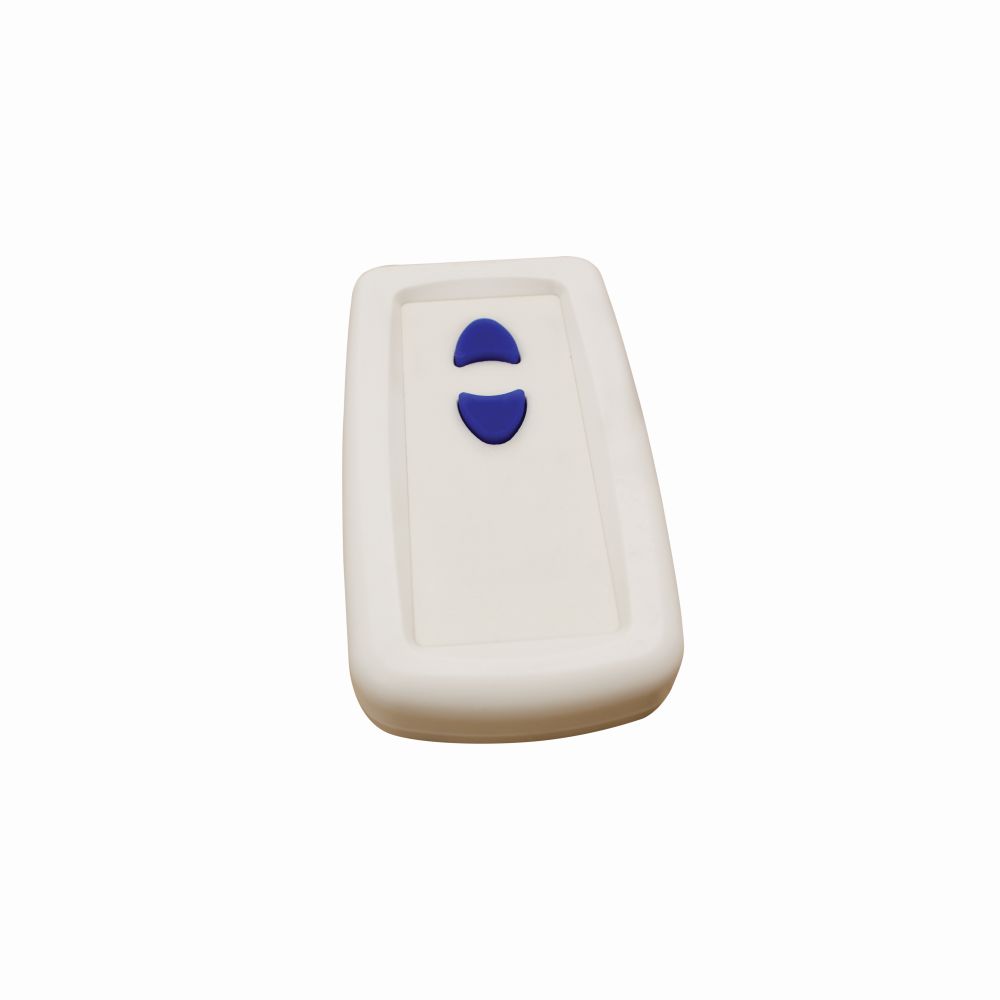

| Call Stations Included | Wireless |
| Track Width | 4.875" |
| Rail Angle, Min | 32° |
| Rail Angle, Max | 52° |
| Digital Diagnostics Display | No |
| Power Cord Lengths | 10' with the charger box in the middle |
| Key Lock | Yes |
Track Lengths Selection: 15' (180") is Standard *
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
- 15' (180") of Track: +$0.00
- Length in inches if Shorter than 180" (allow +7" for entry/exit): +$0.00
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
Additional Track (Maximum 70' Including the 15' Standard Track)
- Up to 3' of Additional Track: +$250.00
- Up to 5' of Additional Track: +$393.00
- Up to 7'9" (93") of Additional Track: +$536.00
- Up to 3' of Additional Track: +$250.00
Additional Brackets (comes with standard)
- Standard Brackets: +$29.00
- Tall Brackets: +$29.00
- Standard Brackets: +$29.00
Options
- Track Cut to Custom Length (Required for any track cut): +$143.00
- Key Lock on Chasis: +$143.00
- Seatbelt Extension: +$100.00
- Manual Lowering Tool: +$50.00
- Folding Rail - Left Hand: +$1,695.00
- Folding Rail - Right Hand: +$1,695.00
- Track Cut to Custom Length (Required for any track cut): +$143.00
Power Options
- No Power Options: +$0.00
- Power Swivel: +$860.00
- Power Footrest: +$795.00
- Power Swivel and Power Footrest: +$1,495.00
- No Power Options: +$0.00
Call Stations
- Top & Bottom Call-Send Stations: +$0.00
- Top & Bottom Call-Send Stations: +$0.00
Orientation (looking UP the staircase)
- The stair lift will be on the left: +$0.00
- The stair lift will be on the right: +$0.00
- The stair lift will be on the left: +$0.00
Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout: +$0.00
- Self Installation: +$0.00
- Nationwide Installation: +$599.00
- Nationwide Installation and Measurement Service: +$749.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout: +$0.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Installation In Remote or Limited Access Location: +$345.00
- Additional Charge for Installation in the States of: New York, and Massachusetts: +$150.00
- Existing Stair Lift Removal: +$499.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
- 1. Overall length: +$0.00
- 2. Top stair to bottom stair: +$0.00
- 3. Staircase width: +$0.00
- 4. Bottom clearance: +$0.00
- 5. Rise of one step: +$0.00
- 6. Tread of one step: +$0.00
- 7. Diagonal: +$0.00
- 8. Door at the top: +$0.00
- Need help measuring? Please see our "How to Measure" page.: +$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
This product currently has no reviews. Would you like to leave one?
