QuickServe II Dumbwaiter
  • Home
  •  >
  • Dumbwaiters
  •  >
  • QuickServe II Dumbwaiter

spacer
QuickServe II Dumbwaiter
click picture to enlarge

QuickServe II Dumbwaiter

Model: SHCHAW

Product Review
(0)
(0)
Write a review!

Add to Cart
Get an Instant Coupon
Regular Price:
$5,708.00
Plus Shipping
Free Shipping

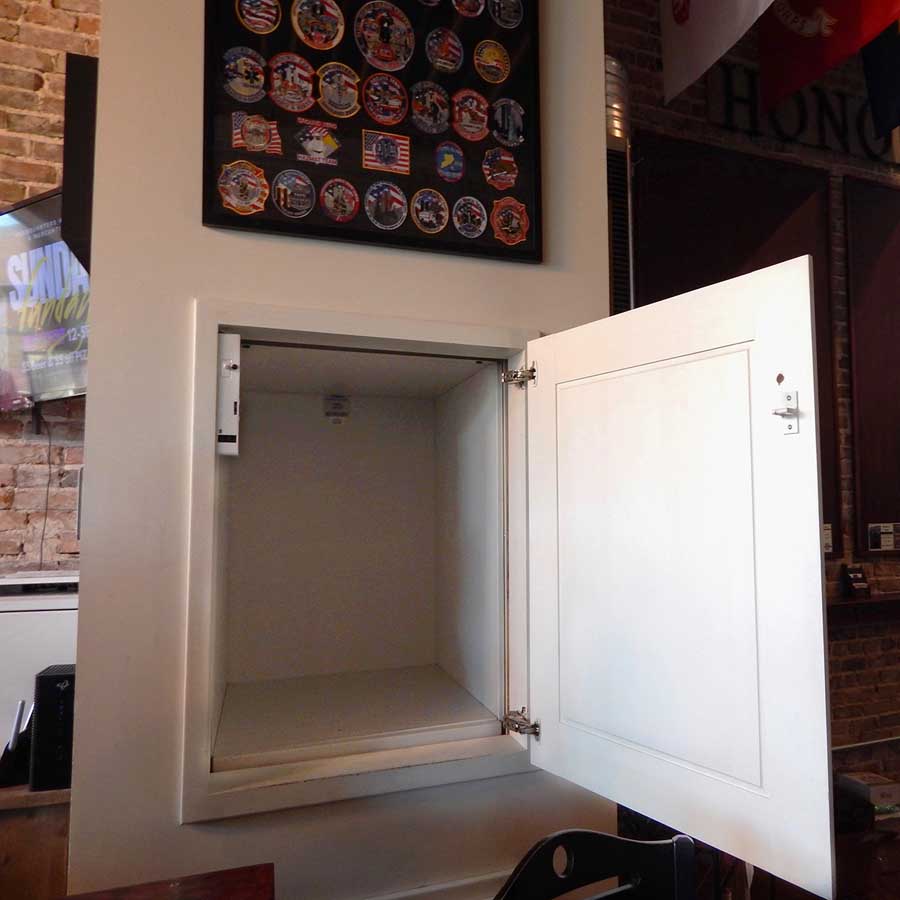

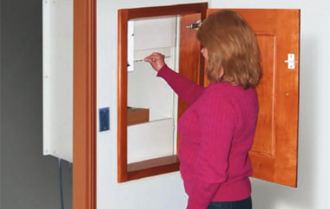

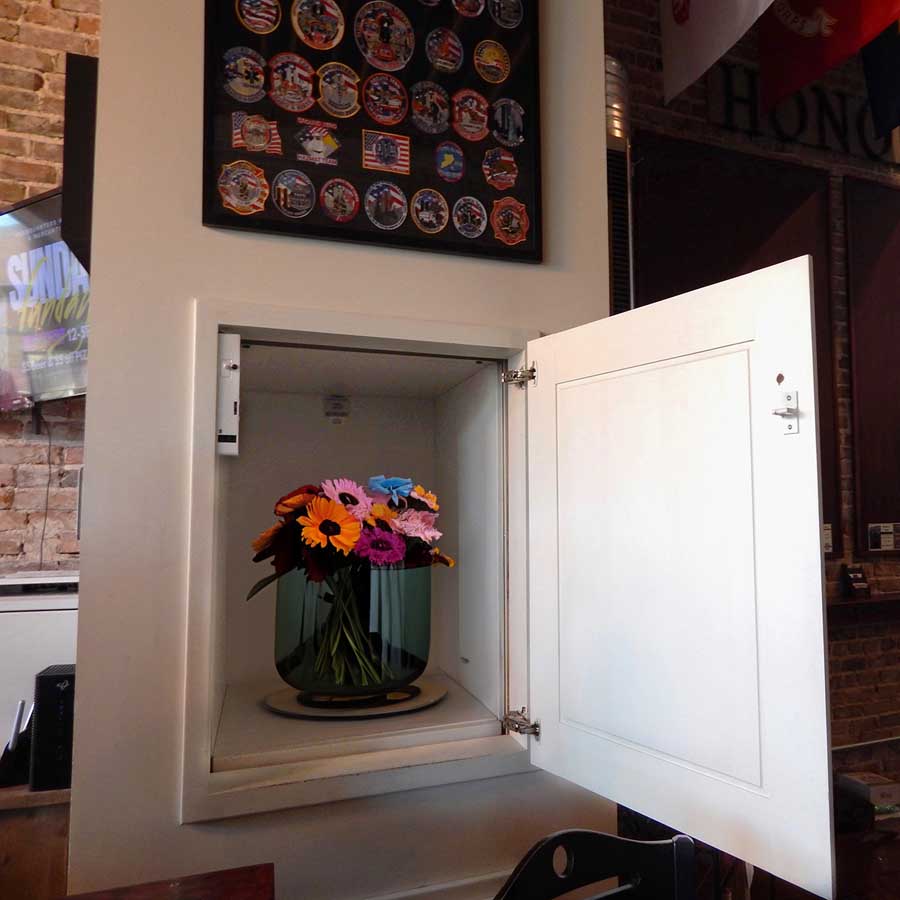

  • Shown in Use

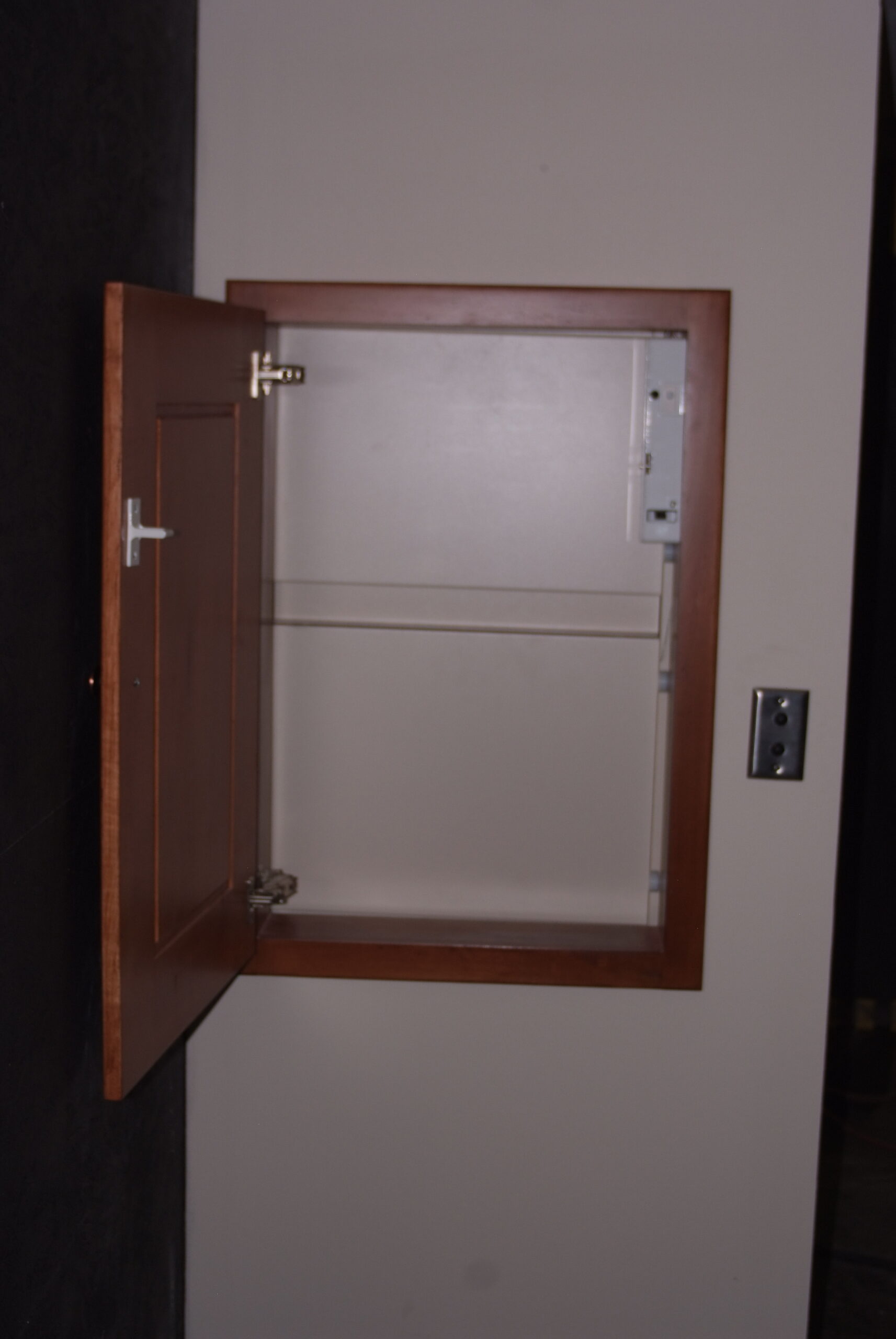

  • Shelf Inside
The Company warrants to the original purchaser of a QuickServe II Dumbwaiter, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
2 years for batteries
5 years for all other component parts

Labor reimbursement is not covered by this warranty

If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.
  • Brochure
  • Specifications
  • Owner's Manual
  • Installation Manual
  • 90 Degree Left Hand Drawing
  • 90 Degree Right Hand Drawing
  • Pass Through Drawing
  • Single Front Entry Drawing
  • Single Left Hand Entry Drawing
  • Single Right Hand Entry Drawing

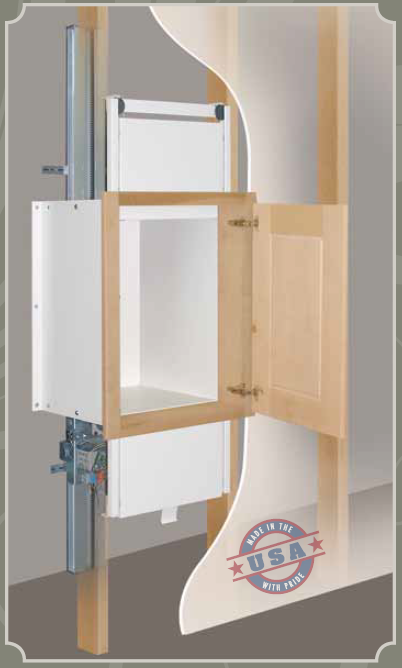

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
  • Rack and pinion drive
  • No slack cable lock-ups
  • Battery operated
  • Fast and easy installation – plug and play
  • Aluminum rail instead of steel T-rail
  • No separate machine room required
  • No remote mounted controller
  • On board diagnostic troubleshooting LED light
  • 20" Wide x 20" Deep x 30" High – 200 lbs capacity
  • 24" Wide x 24" Deep x 30" High – 200 lbs capacity
  • 30" Wide x 30" Deep x 36" High – 275 lbs capacity
  • Optional stainless steel car
  • Warranty 5 years on motor and gear, and 2 years on all other parts
  • Specs
  • Options
  • Reviews
  • Video
Car Size - Standard20Wx20Dx30H or 24Wx24Dx30H
Car Size - Optional30Wx30Dx36H
Straight Through Car OptionYes
90° Car OptionYes
Stops - Standard2
Stops - Optional3 or 4
Max Travel - Standard10'
Max Travel - Optional30'
Weight Capacity - Standard200
Weight Capacity - Optional275
Stainless Steel Panel OptionYes
Hardwood Door OptionYes
  • Stops

    • 2 Stops: +$0.00No Image
    • 3 Stops: +$643.00No Image
    • 4 Stops: +$1,358.00No Image
  • Car Door Placement (in reference to the track)

    • Front Entry: +$0.00Front Entry
    • Left Side Entry: +$0.00Left Side Entry
    • Right Side Entry: +$0.00Right Side Entry
    • Pass Through: +$500.00Pass Through
    • 90 Degree Left Side: +$643.0090 Degree Left Side
    • 90 Degree Right Side: +$643.0090 Degree Right Side
  • Car Material and Dimensions

    • Standard Coated Steel Panels: +$0.0090 Degree Right Side
    • 20"W x 20"D x 30"H (200 LB Capacity): +$0.00No Image
    • 24"W x 24"D x 30"H (200 LB Capacity): +$572.00No Image
    • 30"W x 30" D x 36"H (275 LB Capacity): +$715.00No Image
    • Custom Cab Size: +$1,358.00No Image
    • Stainless Steel Panels: +$0.00No Image
    • Stainless Steel 20"W x 20"D x 30"H: +$2,286.00No Image
    • Stainless Steel 24"W x 24"D x 30"H: +$2,572.00No Image
    • Stainless Steel 30"W x 30" D x 36"H: +$3,143.00No Image
    • Stainless Steel Custom Size: +$3,429.00No Image
  • Car Shelf

    • Up to 4 Total: +$0.00No Image
    • No Optional Car Shelf: +$0.00No Image
    • Adjustable Wire Rack Car Shelf: +$143.00No Image
    • Sliding Shelf: +$500.00No Image
    • Metal Powder Coated Shelf: +$215.00No Image
    • Stainless Steel Car Shelf: +$500.00No Image
  • Call/Send Controls

    • 1 RF Call Station Per Stop: +$0.00No Image
    • Key Lock on RF Call Station: +$72.00No Image
    • Car Here Indicator on RF Call Station: +$143.00No Image
    • Upgrade from RF Call Station to Wired Call/Send (per Station): +$72.00No Image
  • First Landing Door Locations

    • Front: +$0.00No Image
    • Rear: +$0.00No Image
    • Left Side: +$0.00No Image
    • Right Side: +$0.00No Image
  • Second Landing Door Locations

    • Front: +$0.00No Image
    • Rear: +$0.00No Image
    • Left Side: +$0.00No Image
    • Right Side: +$0.00No Image
  • Third Landing Door Locations (if 3 or 4 Stop)

    • None: +$0.00No Image
    • Front: +$0.00No Image
    • Rear: +$0.00No Image
    • Left Side: +$0.00No Image
    • Right Side: +$0.00No Image
  • Fourth Landing Door Locations (if 4 Stop)

    • None: +$0.00No Image
    • Front: +$0.00No Image
    • Rear: +$0.00No Image
    • Left Side: +$0.00No Image
    • Right Side: +$0.00No Image
  • First Landing Hoistway Door Swing

    • Door Hinged on the Right: +$0.00No Image
    • Door Hinged on the Left: +$0.00No Image
  • Second Landing Hoistway Door Swing

    • Door Hinged on the Right: +$0.00No Image
    • Door Hinged on the Left: +$0.00No Image
  • Third Landing Hoistway Door Swing (if 3 or 4 Stop)

    • No Third Stop: +$0.00No Image
    • Door Hinged on the Right: +$0.00No Image
    • Door Hinged on the Left: +$0.00No Image
  • Fourth Landing Hoistway Door Swing (if 4 Stop)

    • No Fourth Stop: +$0.00No Image
    • Door Hinged on the Right: +$0.00No Image
    • Door Hinged on the Left: +$0.00No Image
  • Additional Options

    • Automatic Car Lighting: +$108.00No Image
    • Automatic Homing: +$429.00No Image
    • Select Landing for Automatic Homing (if selected above, bottom is #1): +$0.00No Image
  • RDI Interlock

    • RDI Interlocks (1 per Stop Included): +$0.00No Image
    • NOTE: if any stop has more than one access opening, order additional Interlocks: +$0.00No Image
    • Additional RDI Interlocks: +$429.00No Image
    • Upgrade RDI to Commercial Interlock (per Interlock): +$215.00No Image
  • Track

    • 10' of Extruded Aluminum Track Included: +$0.00No Image
    • Extra Track Per Foot (Over 10'): +$58.00No Image
  • Hoistway/Access Doors

    • No Optional Hoistway Doors: +$0.00No Image
    • Unfinished Poplar Hoistway Door: +$500.00No Image
    • Unfinished Maple Hoistway Door: +$715.00No Image
    • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Poplar: +$500.00No Image
    • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Maple: +$715.00No Image
  • Shipping

    • Shipping to Nearest Freight Terminal/ Loading Dock In or Near Your Zip Code (lower 48): +$0.00No Image
    • Call for Price to ship to Alaska or Hawaii: +$0.00No Image
spacer
This product currently has no reviews. Would you like to leave one?
