2 years on batteries
Lifetime on all parts for the original purchaser
Labor and Shipping of Warranty Parts are not covered in the warranty.
Lifetime on all parts for the original purchaser
Labor and Shipping of Warranty Parts are not covered in the warranty.
The Crest Cargo Lift comes to you at a low price but feature rich.
- LIFETIME WARRANTY on All PARTS for the Original Purchaser *
- ETL listed A17.5 / B44 - A18.1
- Rack and pinion drive

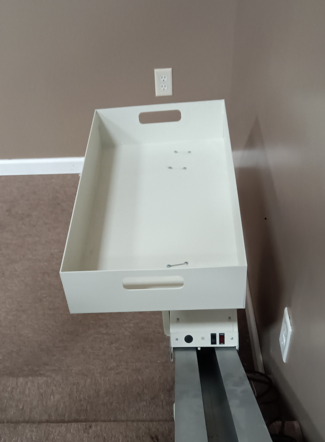

- 300 lbs capacity aluminum cargo tray
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- ANODIZED aluminum rail
- 300 lbs capacity
- Overspeed governor
- Proudly made in the USA!
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 300 lb |
| Max Track Length, Standard | 15' |
| Track Material | Anodized Aluminum |
| Swivel Seat | No |
| Flip-Up Seat | No |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 2 years on batteries / Lifetime on all parts for the original purchaser |
| Call Stations Included | 2 |
| Track Width | 6.5" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Stair Lift Orientation
- Right: +$0.00
- Left: +$0.00
- Right: +$0.00
Chassis / Track Custom Color
- Chassis Custom Color: +$310.00
- RAL Color for Chassis Powder Coat: +$0.00
- Track Custom Color: +$462.00
- RAL Color for Track Powder Coat: +$0.00
- Chassis Custom Color: +$310.00
Track Length
- Standard 15' Of Track: +$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost): +$55.00
- Standard 15' Of Track: +$0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length: +$0.00
- Step 2 - Top Landing to Bottom Step: +$0.00
- Step 3 - Stair Width: +$0.00
- Step 4 - Available Space at Bottom: +$0.00
- Step 5 - Height of One Step: +$0.00
- Step 6 - Length of One Tread: +$0.00
- Step 7 - One Step Front Edge to Front Edge: +$0.00
- Step 8 - Available Space at Top: +$0.00
- Step 1 - Total Staircase Length: +$0.00
Options
- Tall Brackets: +$39.00
- Key Switch: +$77.00
- Tall Brackets: +$39.00
Installation
- Self-Install: +$0.00
- Nationwide Installation Service: +$599.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- Nationwide Measurement and Installation: +$749.00
- Self-Install: +$0.00
Installation Permit
- Permit (Required in Kentucky for EACH item being installed): +$87.50
- Permit (Required in Kentucky for EACH item being installed): +$87.50
Installation Special Cases
- Installation In Remote or Limited Access Location: +$345.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts: +$150.00
- Existing Stair Lift Removal: +$499.00
- Installation In Remote or Limited Access Location: +$345.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track: +$154.00
- Shipping to Alaska or Hawaii (Call for Price): +$0.00
- Additional Shipping Charge for Unit with More Than 16' of Track: +$154.00
