AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift

Model: AMGDCVPL64ENCI

Product Review

(0)

Write a review!

Regular Price:

$13,999.00

Free Shipping

Warranty

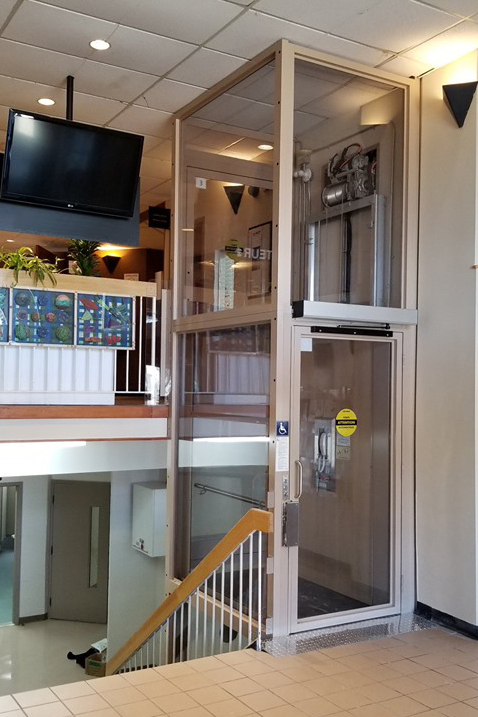

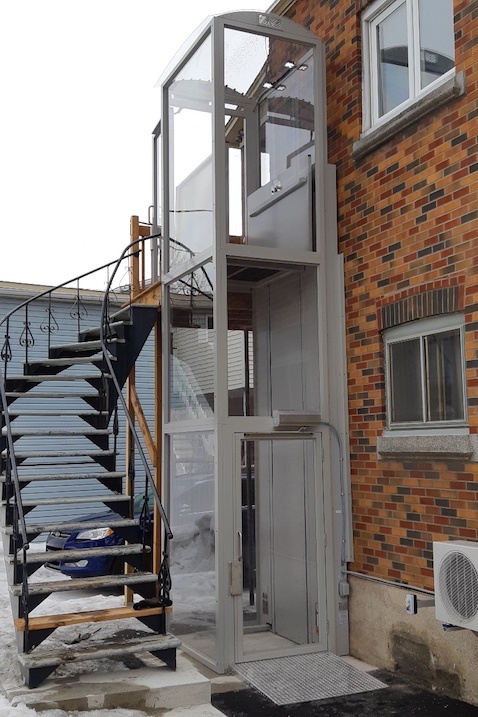

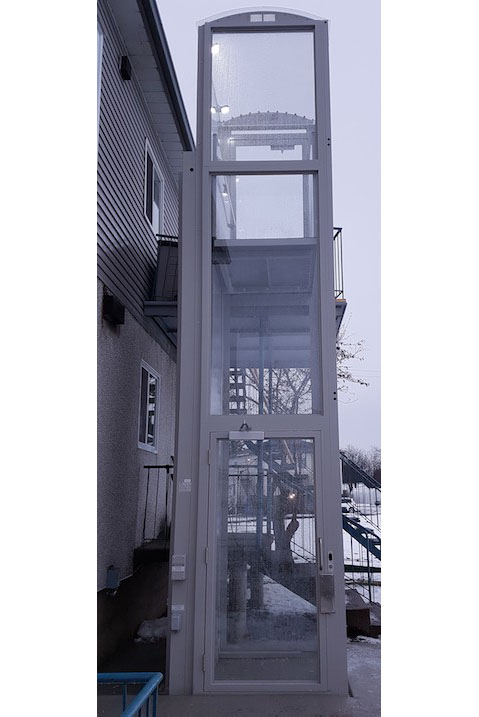

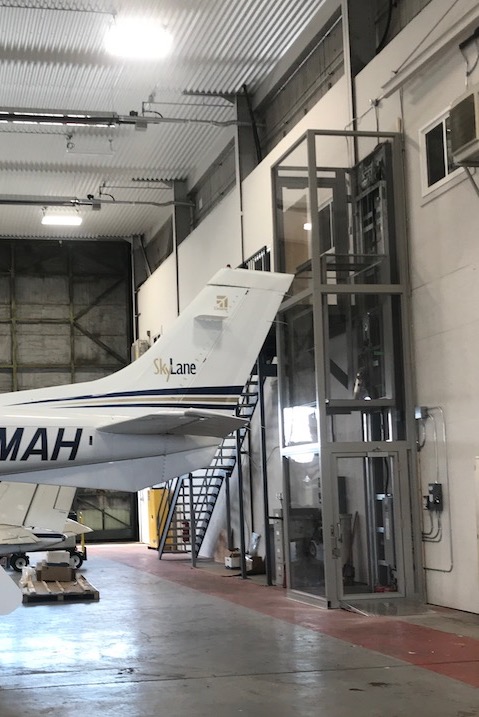

The AmeriGlide Hercules II DC 750 Commercial Enclosed Vertical Lift is the ideal vertical platform lift for outdoor or indoor commercial applications. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions. The enclosure provided with this vertical platform lift makes it unnecessary to have a hoistway built where the lift will be installed.

A 750 pound weight capacity comes standard on the Hercules II DC, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules II DC the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules II DC 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.

Lifting Capacity	750 lb
Standard Lift Height	64"
Maximum Lift Height Upgrade	160"
Arrives Assembled	No
Drive System	Direct Drive Acme Screw
Battery Powered Option	Yes
Constant Pressure Platform Control	Yes
Alarm Button	Included
Platform Type	Non-skid (Epoxy crushed and recycled tires)
Platform Size	W 34"-36" x L 54"-60"
Optional Platform Sizes	Custom: W (31" to 42") x L (46" to 66")
Platform Configuration	Straight-Thru Access
Optional Platform Configurations	Same Side Entry-Exit, 90 Degree Adjacent Access
Grab Rail	Included
Maximum Stops	3
Lift Speed (FPM)	12

Hercules 750 Commercial Enclosed Includes
- 2252 Keys: +$0.00
- Rocker Switch or NEMA 3R: +$0.00
- Manually Resettable Audible Platform Alarm: +$0.00
- Pit Switch: +$0.00
- Grab Bar: +$0.00
- Platform Lights: +$0.00
- Main Disconnect: +$0.00
- AC Power Cord and Interlock Wiring Kit (for Interlocks Included with Doors, Gates): +$0.00
- Wing Walls: +$0.00
Power Source
- DC Battery Powered (2 x U1 Batteries Included): +$0.00
- AC Powered: +$0.00
Number of Stops
- Two Stop: +$0.00
- Three Stop: +$1,995.00
Lifting Height
- 44" Maximum Lift Height (tower 72"): +$1,500.00
- 64" Maximum Lift Height (tower 92"): +$0.00
- 78" Maximum Lift Height (tower 108"): +$3,999.00
- 98" Maximum Lift Height (tower 126"): +$4,999.00
- 115" Maximum Lift Height (tower 158"): +$8,500.00
- 130" Maximum Lift Heigth (tower 158"): +$10,999.00
- 160" Maximum Lift Height (tower 190"): +$12,999.00
Select Tower Bracket Type
- For Tower Heights: 44", 64", 78", 98": +$0.00
- No Bracket Desired (for 44", 64", 78", 98"): +$0.00
- Triangle (for 44", 64", 78", 98"): +$390.91
- Ground Bracket (for 44", 64", 78", 98"): +$390.91
- For Tower Heights 115", 130", 160" (bracket included in unit price): +$0.00
- Triangle Bracket (for 115",130", 160"): +$0.00
- Ground Bracket (for 115",130", 160"): +$0.00
Color of Unit
- Grey (standard): +$0.00
- Custom Color (Call to Verify Color Available): +$3,500.00
- Stainless Steel: +$8,658.56
Fascia Panels
- No Fascia Panels: +$0.00
- Fascia Panels can be any height up to 98". Specify height in decimal feet below.: +$0.00
- Galvanized Steel Fascia Panels (per foot): +$60.00
- 3/16" Acrylic Lexan w/Aluminum Frame (per foot): +$67.20
Platform / Tower Configuration
- Straight Thru Left Hand: +$0.00
- 90 Degree Left Hand: +$1,250.00
- Straight Thru Right Hand: +$0.00
- 90 Degree Right Hand: +$1,250.00
- Same Side Entry/Exit: +$999.00
Guard Panels
- 42" High Steel Guard Panels (Standard): +$0.00
Platform Dimensions (Dimensions are All Clear)
- 34" x 54": +$0.00
- 34" x 60": +$0.00
- 36" x 54": +$0.00
- 36" x 60": +$1,499.00
- Custom: W=30" to 42" by L=46" to 66": +$1,499.00
Platform Controls
- 40mm (1.57") Diameter Buttons on Platform: +$400.00
- 60mm (2.36") Diameter Buttons on Platform: +$400.00
- Joystick: +$209.10
- Additional Platform Controls (On Opposite Side): +$900.00
- Lighted Buttons for COP: +$399.00
Enclosure Options
- Polycarbonate: +$0.00
- Tinted Polycarbonate - Per Inch of Height: +$18.91
- Polycarbonate Rigid Roof & Ventilation System: +$2,995.00
- * Glass Instead of Polycarbonate - Per Inch of Height: +$167.00
- * Glass will increase freight charges. Please call for correct freight charges if glass is selected.: +$0.00
Lower Landing Orientation
- Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower: +$0.00
- Open on Left: +$0.00
- Open on Right: +$0.00
Lower Landing Entrance (Interlock Included with Door/Gate)
- A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,850.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- No Gate or Door (For Gates/Doors Provided by Others): +$0.00
Mid Landing Orientation (3 Stop Units Only)
- Open on Left: +$0.00
- Open on Right: +$0.00
Mid Landing Entrance (3 Stop Units Only, Interlock Included)
- A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,850.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- Interlock is included with any Door Ordered: +$0.00
- No Door (For Doors Provided by Others): +$0.00
Upper Landing Orientation
- Open on Left: +$0.00
- Open on Right: +$0.00
Upper Landing Entrance (Interlock Included with Door/Gate)
- A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00
- 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in Frame): +$1,199.00
- 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in Frame): +$1,695.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,850.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- No Gate or Door (For Gates/Doors Provided by Others): +$0.00
Polycarbonate Gate Option
- If a gate is selected for Upper Landing, this option allows you to switch to a Polycarbonate panel: +$0.00
- Polycarbonate Panel in Upper Landing Gate (must have selected gate above): +$595.00
Interlocks (For Gates/Doors Provided by Others)
- Interlock Only (For Gates/Doors Provided by Others): +$399.00
Call/Send Options
- Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00
- Keyed Call/Send Post - Lower Landing: +$250.00
- Keyed Call/Send Post - Mid Landing: +$250.00
- Keyed Call/Send Post - Upper Landing: +$250.00
- Keyed Call/Send Flush Mount - Lower Landing: +$250.00
- Keyed Call/Send Flush Mount - Mid Landing: +$250.00
- Keyed Call/Send Flush Mount - Upper Landing: +$250.00
- Keyed Call/Send Surface Mount - Lower Landing: +$250.00
- Keyed Call/Send Surface Mount - Mid Landing: +$250.00
- Keyed Call/Send Surface Mount - Upper Landing: +$250.00
- Lighted Buttons for Call Station: +$285.00
- 40mm (1.57") Diameter Buttons on Call Station: +$144.00
- 60mm (2.36") Diameter Buttons on Call Station: +$144.00
- Anti-Tamper Commercial Buttons: +$220.00
- The Following Can Only Be Applied to a Polycarbonate Door: +$0.00
- Keyed Call/Send In Door's Frame - Lower Landing: +$350.00
- Keyed Call/Send In Door's Frame - Mid Landing: +$350.00
- Keyed Call/Send In Door's Frame - Upper Landing: +$350.00
Auto Openers and Closers
- Auto Operator for Gate Qty.: +$1,495.00
- Auto Operator for Door Qty.: +$2,295.00
- Wireless Remotes for Auto Operators (2x): +$240.00
- Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator): +$162.50
Other Options
- Designer Gate: +$400.00
- Easy Access Lowering Mechanism: +$596.37
- Folding Seat: +$599.00
- Fixed Ramp for Bottom Landing: +$599.00
- Custom Sized Folding Ramp (less than 24"): +$390.91
- Additional Weather Protection Coating: +$1,995.00
- Front Panel Brushes (Travel Track Protection): +$399.00
- GFI Outlet in Wing Wall: +$159.82
- Handsfree Phone: +$999.00
- 1000 lbs. Capacity: +$1,995.00
- All Wooden Crate: +$199.00
