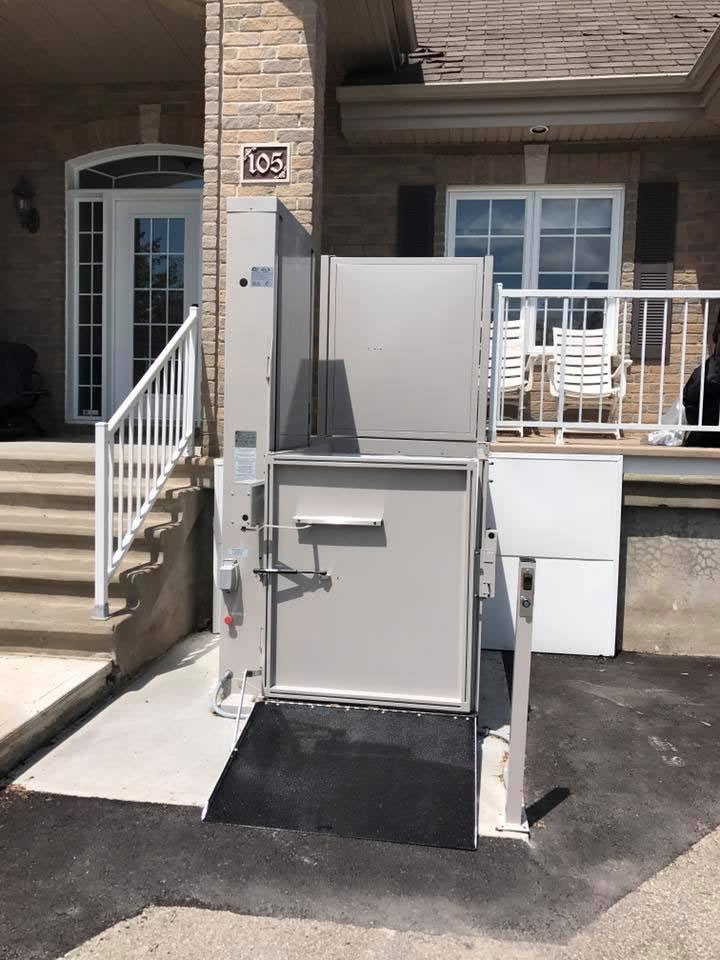

The AmeriGlide Hercules 750 Commercial Vertical Lift is the ideal turnkey vertical platform lift for outdoor or indoor commercial applications which includes Platform and Upper Landing Gates and Call/Send for both levels. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.
A 750 pound weight capacity is standard on the Hercules. Great for lifting large wheelchairs and two people at one time.

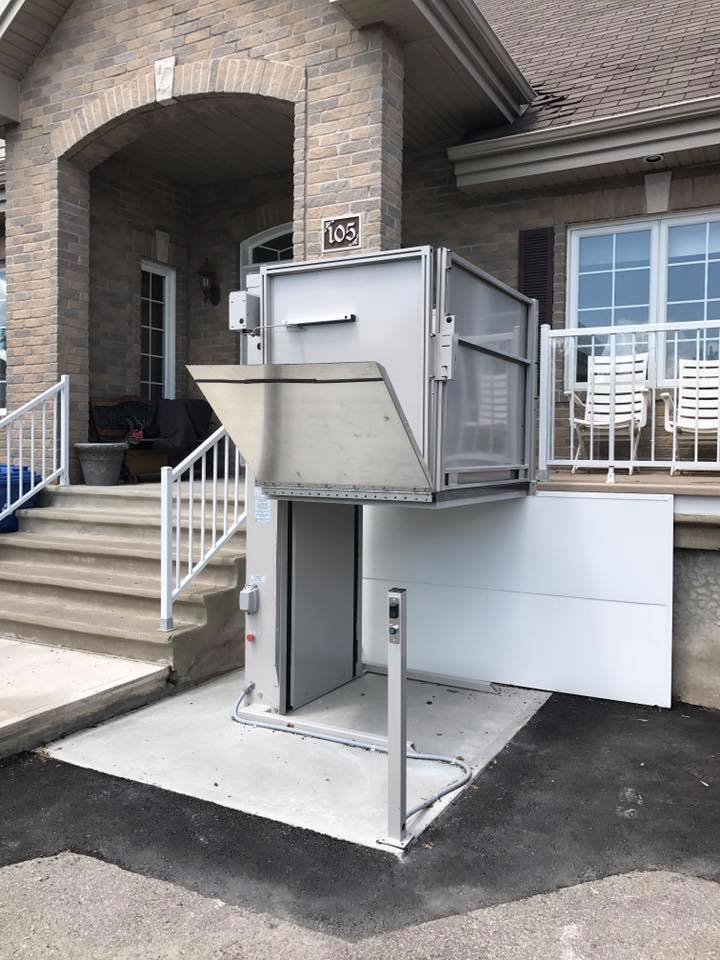

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.
If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 64" |
| Maximum Lift Height Upgrade | 64" |
| Arrives Assembled | No |
| Drive System | Direct Drive ACME Screw |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Alarm Button | Included |
| Platform Type | Non-skid (Epoxy crushed and recycled tires) |
| Platform Size | 36"W x 54"L |
| Optional Platform Sizes | n/a |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | n/a |
| Grab Rail | Included |
| Maximum Stops | 2 |
| Lift Speed (FPM) | 12 |
| Portable | No |
Commercial Quick Ship Hercules 750 Includes
- Platform Gate (hinged on same side as tower): +$0.00
- Upper Landing Gate, Includes Integrated Call/Send (hinge side selected below): +$0.00
- 2252 Keys: +$0.00
- Rocker Switch: +$0.00
- Manually Resettable Audible Platform Alarm: +$0.00
- Pit Switch: +$0.00
- Grab Bar: +$0.00
- Platform Lights: +$0.00
- Main Disconnect: +$0.00
- AC Power Cord and Interlock Wiring Kit (Interlocks Not Included): +$0.00
- Platform Gate (hinged on same side as tower): +$0.00
Power Source
- DC 24V Battery Operated: +$0.00
- AC 120V: +$0.00
- DC 24V Battery Operated: +$0.00
Number of Stops
- Two Stop: +$0.00
- Two Stop: +$0.00
Lifting Height
- 64" Maximum Lift Height (tower 92"): +$0.00
- 64" Maximum Lift Height (tower 92"): +$0.00
Color of Unit
- Atlas Gray (standard): +$0.00
- Atlas Gray (standard): +$0.00
Platform / Tower Configuration
- Straight Thru Left Hand: +$0.00
- Straight Thru Right Hand: +$0.00
- Straight Thru Left Hand: +$0.00
Platform Dimensions (Dimensions are All Clear)
- 36" x 54": +$0.00
- 36" x 54": +$0.00
Upper Landing Hinge Side (includes Call/Send in Gate Frame)
- Open on Left (hinged on right): +$0.00
- Open on Right (hinged on left): +$0.00
- Open on Left (hinged on right): +$0.00
Call/Send (One Included for Lower Landings)

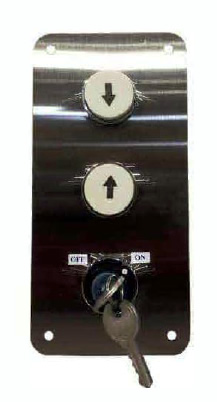

- Surface Mount: +$0.00
- Flush Mount: +$0.00

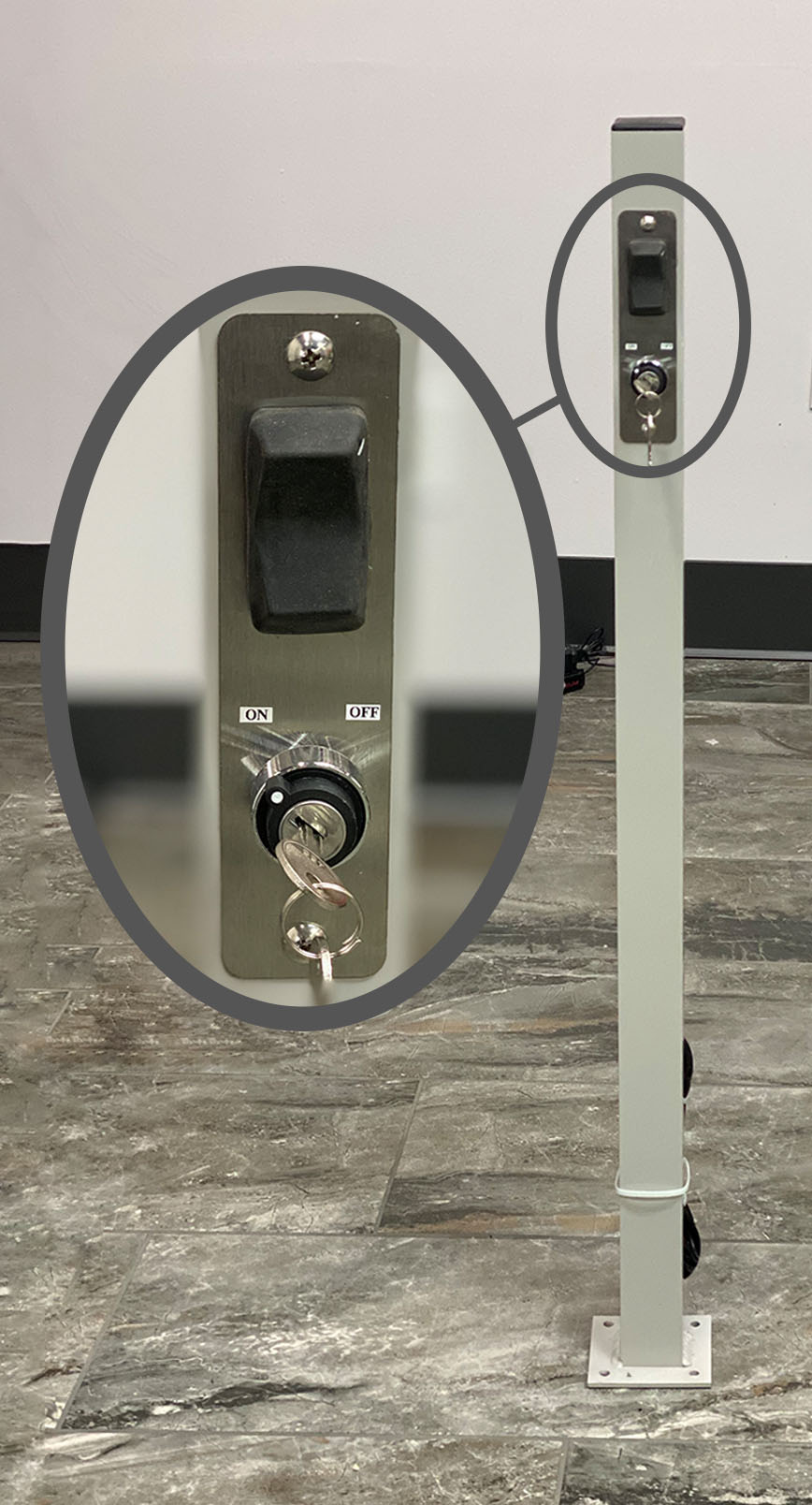

- Post Mount: +$0.00
- Surface Mount: +$0.00
Additional Call/Send
- Surface Mount: +$250.00
- Flush Mount: +$250.00
- Post Mount: +$250.00
- Surface Mount: +$250.00
Delivery Options
- Pick up at Local Freight Terminal: +$0.00
- Raleigh NC Warehouse Pickup: +$675.00
- Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site: +$0.00
- Site Shipping - Liftgate Delivery: +$250.00
- Site Shipping - Flat Bed Fork Lift: +$1,495.00
- Pick up at Local Freight Terminal: +$0.00
Delivery Zones (adds to flat shipping charge)
- Deliver to: Eastern and East-Central States: +$0.00
- Deliver to:FL, IA, KS, ME, MN, NY, OK: +$375.00
- Deliver to: CO, KS, NE, ND, NM, OK, SD, TX, WY: +$750.00
- Deliver to: AZ, CA, ID, MT, NV, OR, UT, WA: +$1,250.00
- Deliver to: AK, HI, PR (call for price): +$0.00
- Deliver to: Eastern and East-Central States: +$0.00
