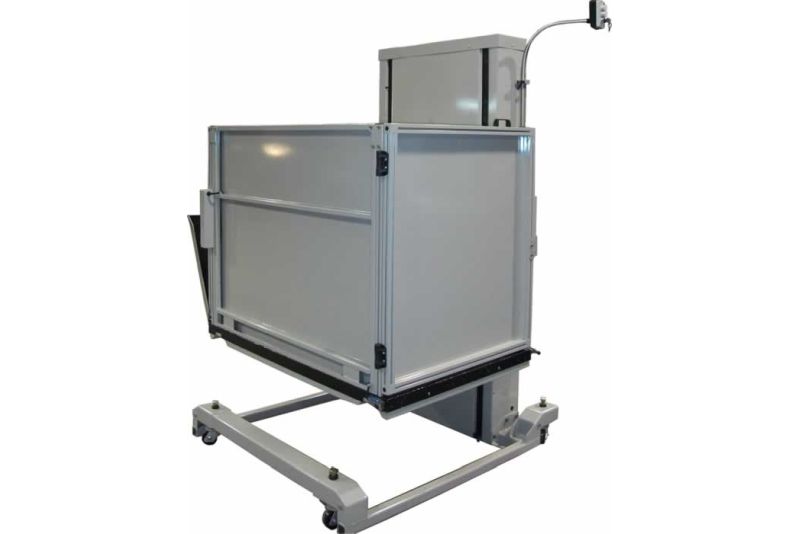

The AmeriGlide Hercules II DC 750 Portable is a practical addition to any commercial or residential application that requires wheelchair accessibility in more than one location. The DC 750 Portable can be moved between locations quickly and easily with its retractable casters and adjustable stabilizing screws.
The non-skid epoxy coated floor and galvanized steel panel is durable and weather resistant for outdoor applications, even in the harshest conditions.
A 750 pound weight capacity comes standard, great for lifting large wheelchairs.
The acme screw direct drive makes the 750 Portable the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules II DC 750 Portable Vertical Platform Lift, call and speak with our experienced VPL experts today.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 64" |
| Maximum Lift Height Upgrade | 64" |
| Arrives Assembled | No |
| Drive System | Direct Drive ACME Screw |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Alarm Button | Included |
| Platform Type | Non-skid (Epoxy crushed and recycled tires) |
| Platform Size | W 34"-36" x L 54"-60" |
| Optional Platform Sizes | Custom: W (31" to 42") x L (46" to 66") |
| Platform Configuration | Straight-Thru Access |
| Grab Rail | Optional |
| Maximum Stops | 2 |
| Lift Speed (FPM) | 9 |
| Portable | Yes |
Portable Option for Hercules DC 750 Includes
- 455 Keys: +$0.00
- Rocker Switch: +$0.00
- Audible Emergency Alarm: +$0.00
- Pit Switch: +$0.00
- AC Power Cord and Interlock Wiring Kit (Interlocks Not Included): +$0.00
- Two Platform Gates - Interlocks Included: +$0.00
- Two Call Stations Fixed on the Tower: +$0.00
- 455 Keys: +$0.00
Power Source
- DC Battery Powered (2 x U1 Batteries Included): +$0.00
- AC Powered: +$0.00
- DC Battery Powered (2 x U1 Batteries Included): +$0.00
Lifting Height
- 44" Maximum Lift Height: +$0.00
- 64" Maximum Lift Height: +$0.00
- 44" Maximum Lift Height: +$0.00
Color of Unit
- Grey (standard): +$0.00
- Custom Color (Call to Verify Color Availability): +$3,000.00
- Stainless Steel: +$8,658.56
- Grey (standard): +$0.00
Platform / Tower Configuration
- Straight Thru Left Hand: +$0.00
- Straight Thru Right Hand: +$0.00
- Straight Thru Left Hand: +$0.00
Platform Dimensions (Dimensions are All Clear)
- 34" x 54": +$0.00
- 34" x 60": +$0.00
- 36" x 54": +$0.00
- 36" x 60": +$1,499.00
- Custom: W=31" to 42" by L=46" to 66": +$1,499.00
- 34" x 54": +$0.00

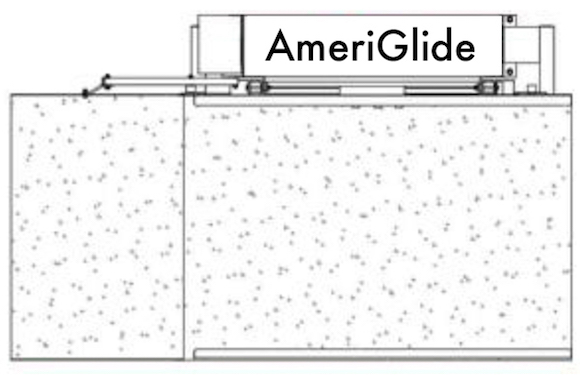

Lower Landing Orientation
- Open on Left: +$0.00
- Open on Right: +$0.00
- Open on Left: +$0.00

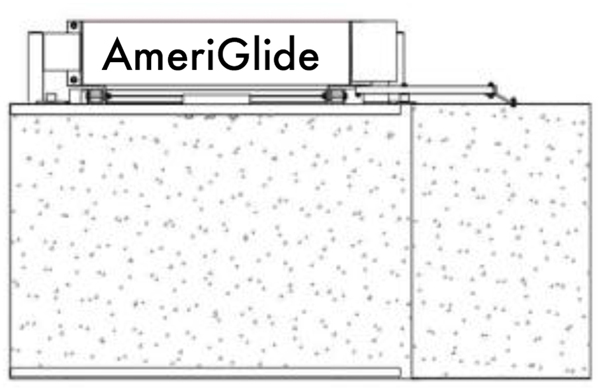

Upper Landing Orientation
- Open on Left: +$0.00
- Open on Right: +$0.00
- Open on Left: +$0.00
Delivery Options
- Factory Pickup: +$0.00
- Pickup at Local Freight Terminal: +$0.00
- Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site: +$0.00
- Site Shipping - Liftgate Delivery: +$250.00
- Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas): +$1,495.00
- Factory Pickup: +$0.00
