AmeriGlide Hercules 750 Residential
click picture to enlarge

AmeriGlide Hercules 750 Residential

Model: HERC 750 DC Residential [64,44, 78, 98]

Product Review
(0)
(0)
Write a review!

Add to Cart
Get an Instant Coupon
Regular Price: $5,100.00
$4,698.00On Sale
Plus Shipping
Free Shipping


  • Shown Mounted to Side of Deck
  • Shown Attached to Front Porch
  • Shown Adjacent to Deck Stairs
  • Shown Mounted to Side of Deck
Warranty
  • Brochure
  • Order Form
  • Owner's Guide
  • Specifications
  • Install Guide
  • Typical Drawing - 34x54 Straight Thru
  • Typical Drawing - 34x54 LH Adjacent
  • Typical Drawing - 34x54 RH Adjacent
  • Optional Enclosure Specifications
  • Optional Enclosure Installation
  • Optional Extended Tower Installation

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

  • Specs
  • Options
  • Reviews
  • Video
Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height Upgrade160"
Arrives AssembledNo
Drive SystemDirect Drive ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailOptional
Maximum Stops3
Lift Speed (FPM)9
PortableOptional
  • Residential Hercules DC 750 Includes

    • 455 Keys: +$0.00No Image
    • Rocker Switch: +$0.00No Image
    • Audible Emergency Alarm: +$0.00No Image
    • Pit Switch: +$0.00No Image
    • AC Power Cord and Interlock Wiring Kit (Interlocks Not Included): +$0.00No Image
  • Power Source

    • DC Battery Powered (2 x U1 Batteries Included): +$0.00No Image
    • AC Powered: +$0.00No Image
  • Number of Stops

    • Two Stop: +$0.00No Image
    • Three Stop: +$1,995.00No Image
  • Lifting Height

    • 44" Maximum Lift Height (tower 72"): +$1,299.00No Image
    • 64" Maximum Lift Height (tower 92"): +$0.00No Image
    • 78" Maximum Lift Height (tower 108"): +$2,599.00No Image
    • 98" Maximum Lift Height (tower 126"): +$3,899.00No Image
    • 115" Maximum Lift Height (tower 158"): +$6,599.00No Image
    • 130" Maximum Lift Heigth (tower 158"): +$7,299.00No Image
    • 160" Maximum Lift Height (tower 190"): +$7,999.00No Image
  • Select Tower Bracket Type

    • For Tower Heights: 44", 64", 78", 98": +$0.00No Image
    • No Bracket Desired (for 44", 64", 78", 98"): +$0.00No Image
    • Triangle (for 44", 64", 78", 98"): +$390.91No Image
    • Ground Bracket (for 44", 64", 78", 98"): +$390.91No Image
    • For Tower Heights 115", 130", 160" (bracket included in unit price): +$0.00No Image
    • Triangle Bracket (for 115",130", 160"): +$0.00No Image
    • Ground Bracket (for 115",130", 160"): +$0.00No Image
  • Color of Unit

    • Grey (standard): +$0.00No Image
    • Custom Color (Call to Verify Color Available): +$3,500.00No Image
    • Stainless Steel: +$8,995.00No Image
  • Fascia Panels

    • No Fascia Panels: +$0.00No Image
    • Fascia Panels can be any height up to 98". Specify height in decimal feet below.: +$0.00No Image
    • Galvanized Steel Fascia Panels (per foot): +$60.00No Image
    • 3/16" Acrylic Lexan w/Aluminum Frame (per foot): +$67.20No Image
  • Platform / Tower Configuration

    • Straight Thru Left Hand: +$0.00Straight Thru Left Hand
    • 90 Degree Left Hand: +$999.0090 Degree Left Hand
    • Straight Thru Right Hand: +$0.00Straight Thru Right Hand
    • 90 Degree Right Hand: +$999.0090 Degree Right Hand
    • Same Side Entry/Exit (For Hoistway Installs Only): +$999.00No Image
  • Guard Panels / Cab

    • 42" High Steel Guard Panels (Standard): +$0.00No Image
    • 80" High Full Cab: +$5,040.00No Image
  • Platform Canopy for 42" Panels (Rather Than Full Cab)

    • No Canopy: +$0.00No Image
    • Platform Canopy: +$1,450.00No Image
  • Wing Walls

    • No Wing Walls: +$0.00No Image
    • 64" Travel: +$1,268.40No Image
    • 78" Travel: +$1,402.80No Image
    • 98" Travel: +$1,537.20No Image
    • 115" Travel: +$1,669.92No Image
    • 130" Travel: +$1,797.60No Image
    • 160" Travel: +$1,932.00No Image
    • New Option: +$0.00No Image
    • New Option: +$0.00No Image
  • Platform Dimensions (Dimensions are All Clear)

    • 34" x 54": +$0.00No Image
    • 34" x 60": +$0.00No Image
    • 36" x 54": +$0.00No Image
    • 36" x 60": +$1,499.00No Image
    • Custom: W=30" to 42" by L=46" to 66": +$1,499.00No Image
  • Platform Controls

    • 40mm (1.57") Diameter Buttons on Platform: +$400.00No Image
    • 60mm (2.36") Diameter Buttons on Platform: +$400.00No Image
    • Joystick: +$209.10No Image
    • Additional Platform Controls (On Opposite Side): +$699.00No Image
    • Lighted Buttons for COP: +$399.00No Image
  • Lower Landing (Platform) Orientation

    • Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower: +$0.00No Image
    • Open on Left: +$0.00Open on Left
    • Open on Right: +$0.00Open on Right
  • Lower Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00Open on Right
    • 36" W x 42" H Platform Gate: +$1,299.00No Image
    • 38" to 42" W x 42" H Platform Gate: +$1,799.00No Image
    • Door 80" H x 36" W Interior: +$1,350.00Hercules Door 36" x 80" Interior
    • Door 80" H x 36" W Exterior: +$2,399.00Hercules Door 36" x 80" Exterior
    • Door 80" H x 36" W Fire Rated: +$2,250.00Hercules Door 36" x 80" Fire Rated
    • Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00Hercules Door 36" x 80" Exterior Polycarbonate
    • Door 80" H x 42" W Interior: +$2,295.00Hercules Door 42" x 80" Interior
    • Door 80" H x 42" W Exterior: +$3,250.00Hercules Door 42" x 80" Exterior
    • Door 80" H x 42" W Fire Rated: +$2,999.00Hercules Door 42" x 80" Fire Rated
    • Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00Hercules Door 42" x 80" Exterior Polycarbonite
    • No Gate or Door (For Gates/Doors Provided by Others): +$0.00No Image
  • Mid Landing Orientation (3 Stop Units Only)

    • Open on Left: +$0.00No Image
    • Open on Right: +$0.00No Image
  • Mid Landing Entrance (3 Stop Units Only, Interlock Included)

    • A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00No Image
    • Door 80" H x 36" W Interior: +$1,350.00Hercules Door 36" x 80" Interior
    • Door 80" H x 36" W Exterior: +$2,399.00Hercules Door 36" x 80" Exterior
    • Door 80" H x 36" W Fire Rated: +$2,250.00Hercules Door 36" x 80" Fire Rated
    • Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00Hercules Door 36" x 80" Exterior Polycarbonate
    • Door 80" H x 42" W Interior: +$2,295.00Hercules Door 42" x 80" Interior
    • Door 80" H x 42" W Exterior: +$3,250.00Hercules Door 42" x 80" Exterior
    • Door 80" H x 42" W Fire Rated: +$2,999.00Hercules Door 42" x 80" Fire Rated
    • Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00Hercules Door 42" x 80" Exterior Polycarbonite
    • Interlock is included with any Door Ordered: +$0.00Hercules Door 42" x 80" Exterior Polycarbonite
    • No Door (For Doors Provided by Others): +$0.00No Image
  • Upper Landing Orientation

    • Open on Left: +$0.00Open on Left
    • Open on Right: +$0.00Open on Right
  • Upper Landing Entrance (Interlock Included with Door/Gate)

    • A Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00Open on Right
    • 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in frame): +$1,199.00No Image
    • 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in frame): +$1,695.00No Image
    • Door 80" H x 36" W Interior: +$1,350.00Hercules Door 36" x 80" Interior
    • Door 80" H x 36" W Exterior: +$2,399.00Hercules Door 36" x 80" Exterior
    • Door 80" H x 36" W Fire Rated: +$2,250.00Hercules Door 36" x 80" Fire Rated
    • Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00Hercules Door 36" x 80" Exterior Polycarbonate
    • Door 80" H x 42" W Interior: +$2,295.00Hercules Door 42" x 80" Interior
    • Door 80" H x 42" W Exterior: +$3,250.00Hercules Door 42" x 80" Exterior
    • Door 80" H x 42" W Fire Rated: +$2,999.00Hercules Door 42" x 80" Fire Rated
    • Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00Hercules Door 42" x 80" Exterior Polycarbonite
    • No Gate or Door (For Gates/Doors Provided by Others): +$0.00No Image
  • Polycarbonate Gate Option

    • If a gate is selected for Platform or Upper Landing, these options allow you to switch to a Polycarbonate panel: +$0.00No Image
    • Polycarbonate Panel in Platform Gate (must have selected gate above): +$436.37No Image
    • Polycarbonate Panel in Upper Landing Gate (must have selected gate above): +$595.00No Image
  • Interlocks (For Gates/Doors Provided by Others)

    • Interlock Only (For Gates/Doors Provided by Others): +$399.00Hercules Interlock for Customer Provided Gate or Door
  • Call/Send Options

    • 40mm (1.57") Diameter Buttons on Call Station: +$144.00No Image
    • 60mm (2.36") Diameter Buttons on Call Station: +$144.00No Image
    • Anti-Tamper Commercial Buttons: +$220.00No Image
    • Keyed Call/Send Post - Lower Landing: +$250.00Hercules DC 750 Call/Send Post
    • Keyed Call/Send Post - Mid Landing: +$250.00Hercules DC 750 Call/Send Post
    • Keyed Call/Send Post - Upper Landing: +$250.00Hercules DC 750 Call/Send Post
    • Keyed Call/Send Flush Mount - Lower Landing: +$250.00Hercules DC 750 Flush Mount Call/Send
    • Keyed Call/Send Flush Mount - Mid Landing: +$250.00Hercules DC 750 Flush Mount Call/Send
    • Keyed Call/Send Flush Mount - Upper Landing: +$250.00Hercules DC 750 Flush Mount Call/Send
    • Keyed Call/Send Surface Mount - Lower Landing: +$250.00Hercules DC 750 Surface Mount Call/Send
    • Keyed Call/Send Surface Mount - Mid Landing: +$250.00Hercules DC 750 Surface Mount Call/Send
    • Keyed Call/Send Surface Mount - Upper Landing: +$250.00Hercules DC 750 Surface Mount Call/Send
    • Keyed Call/Send In Gate's Frame - Upper Landing Only: +$250.00Hercules DC 750 In Gate Frame Call/Send
    • Lighted Buttons for Call Station: +$285.00No Image
    • Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00No Image
  • Auto Openers and Closers

    • Auto Operator for Gate Qty.: +$1,495.00No Image

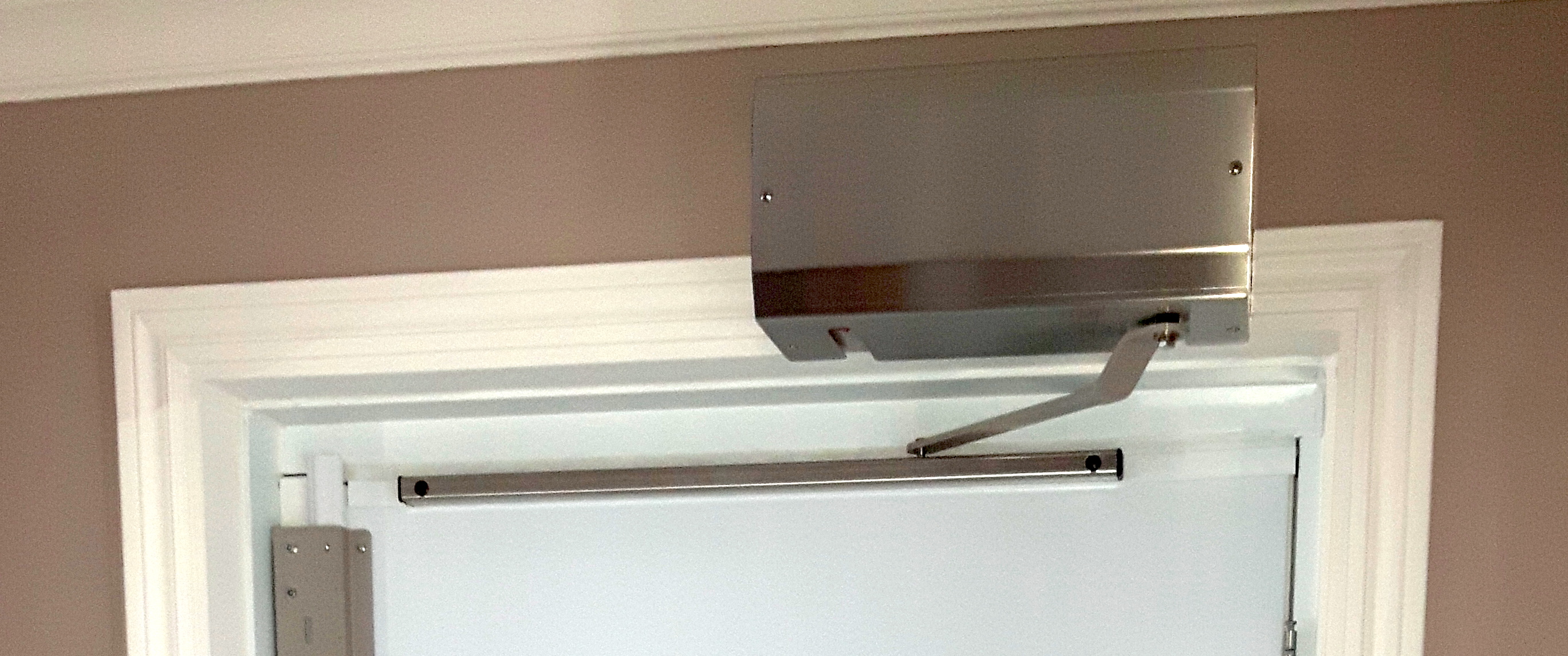

    • Auto Operator for Door Qty.: +$1,695.00Hercules DC 750 Auto Operator for Door (Residential & Commercial)
    • Wireless Remotes for Auto Operators (2x): +$240.00No Image
    • Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator): +$156.00Hercules DC 750 Gas-Spring Door Closer
  • Other Options

    • Grab Bar: +$350.00No Image
    • Platform Lights: +$240.00No Image
    • Disconnect Switch: +$240.00No Image
    • Designer Gate: +$400.00No Image
    • Easy Access Lowering Mechanism: +$596.37No Image
    • Folding Seat: +$599.00No Image
    • Fixed Ramp for Bottom Landing: +$599.00No Image
    • Custom Sized Folding Ramp (less than 24"): +$390.91No Image
    • Additional Weather Protection Coating: +$1,995.00No Image
    • Front Panel Brushes (Travel Track Protection): +$399.00No Image
    • GFI Outlet in Wing Wall: +$159.82No Image
    • 1000 lbs. Capacity: +$1,995.00No Image
    • Handsfree Phone: +$999.00No Image
    • All Wooden Crate: +$199.00No Image
    • Float Switch: +$399.00No Image
  • Delivery Options

    • Pick up at Local Freight Terminal: +$0.00No Image
    • Factory Pickup: +$0.00No Image
    • Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site: +$0.00No Image
    • Site Shipping - Liftgate Delivery (only for 64" models): +$199.00No Image
  • Delivery State

    • Alabama: +$0.00No Image
    • Alaska: +$0.00No Image
    • Arizona: +$0.00No Image
    • Arkansas: +$0.00No Image
    • California: +$0.00No Image
    • Colorado: +$0.00No Image
    • Connecticut: +$0.00No Image
    • Delaware: +$0.00No Image
    • District of Columbia: +$0.00No Image
    • Florida: +$0.00No Image
    • Georgia: +$0.00No Image
    • Hawaii: +$0.00No Image
    • Idaho: +$0.00No Image
    • Illinois: +$0.00No Image
    • Indiana: +$0.00No Image
    • Iowa: +$0.00No Image
    • Kansas: +$0.00No Image
    • Kentucky: +$0.00No Image
    • Louisiana: +$0.00No Image
    • Maine: +$0.00No Image
    • Maryland: +$0.00No Image
    • Massachusetts: +$0.00No Image
    • Michigan: +$0.00No Image
    • Minnesota: +$0.00No Image
    • Mississippi: +$0.00No Image
    • Missouri: +$0.00No Image
    • Montana: +$0.00No Image
    • Nebraska: +$0.00No Image
    • Nevada: +$0.00No Image
    • New Hampshire: +$0.00No Image
    • New Jersey: +$0.00No Image
    • New Mexico: +$0.00No Image
    • New York: +$0.00No Image
    • North Carolina: +$0.00No Image
    • North Dakota: +$0.00No Image
    • Ohio: +$0.00No Image
    • Oklahoma: +$0.00No Image
    • Oregon: +$0.00No Image
    • Pennsylvania: +$0.00No Image
    • Rhode Island: +$0.00No Image
    • South Carolina: +$0.00No Image
    • South Dakota: +$0.00No Image
    • Tennessee: +$0.00No Image
    • Texas: +$0.00No Image
    • Utah: +$0.00No Image
    • Vermont: +$0.00No Image
    • Virginia: +$0.00No Image
    • Washington: +$0.00No Image
    • West Virginia: +$0.00No Image
    • Wisconsin: +$0.00No Image
    • Wyoming: +$0.00No Image
spacer
This product currently has no reviews. Would you like to leave one?




    Better Business Bureau


    copyright © 2002-2023 Electric Wheelchairs 101 - All Rights Reserved

    • Terms and Conditions
    • Privacy Policy
    • Return Policy
    • Delivery
    spacer

    Phone: 1 (800) 250-2547 ·  Fax: (919) 443-1481
