Regular Price: $4,441.00
$2,195.00
Plus Shipping
Quick Ship Product
5 years on the motor gear box
2 years on components
2 years on components

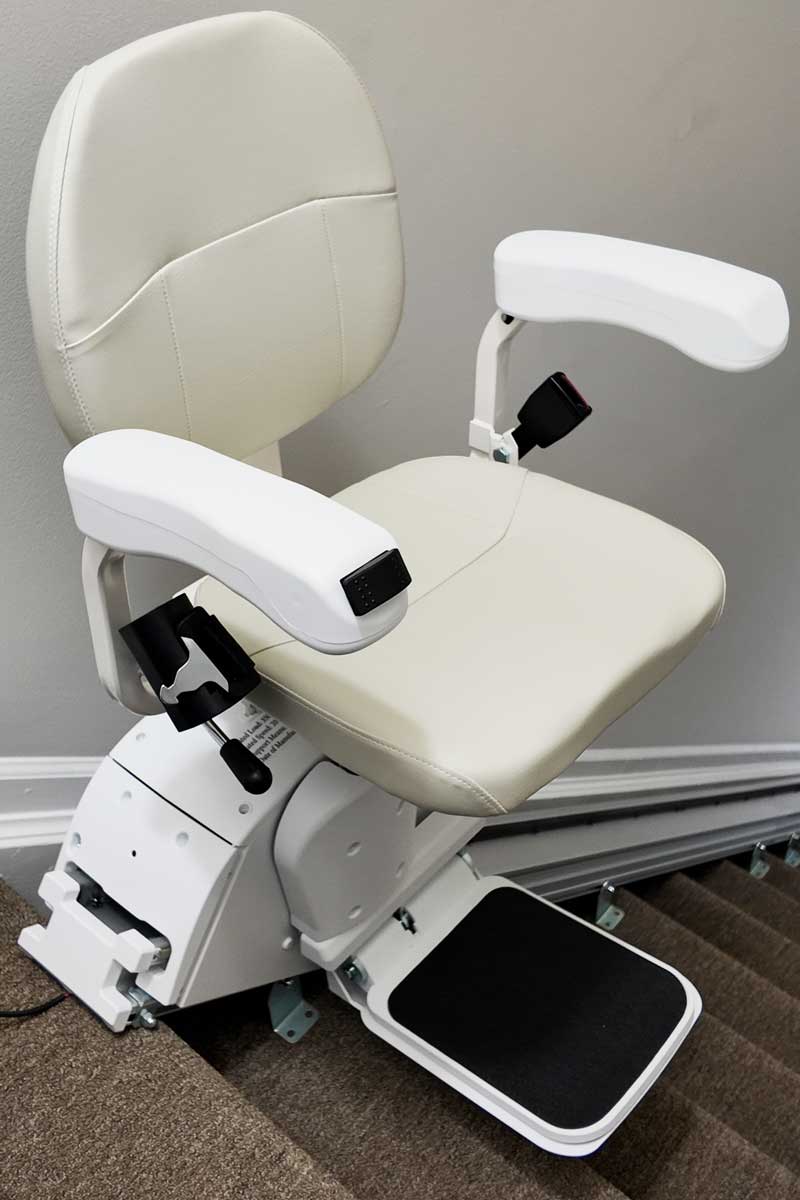

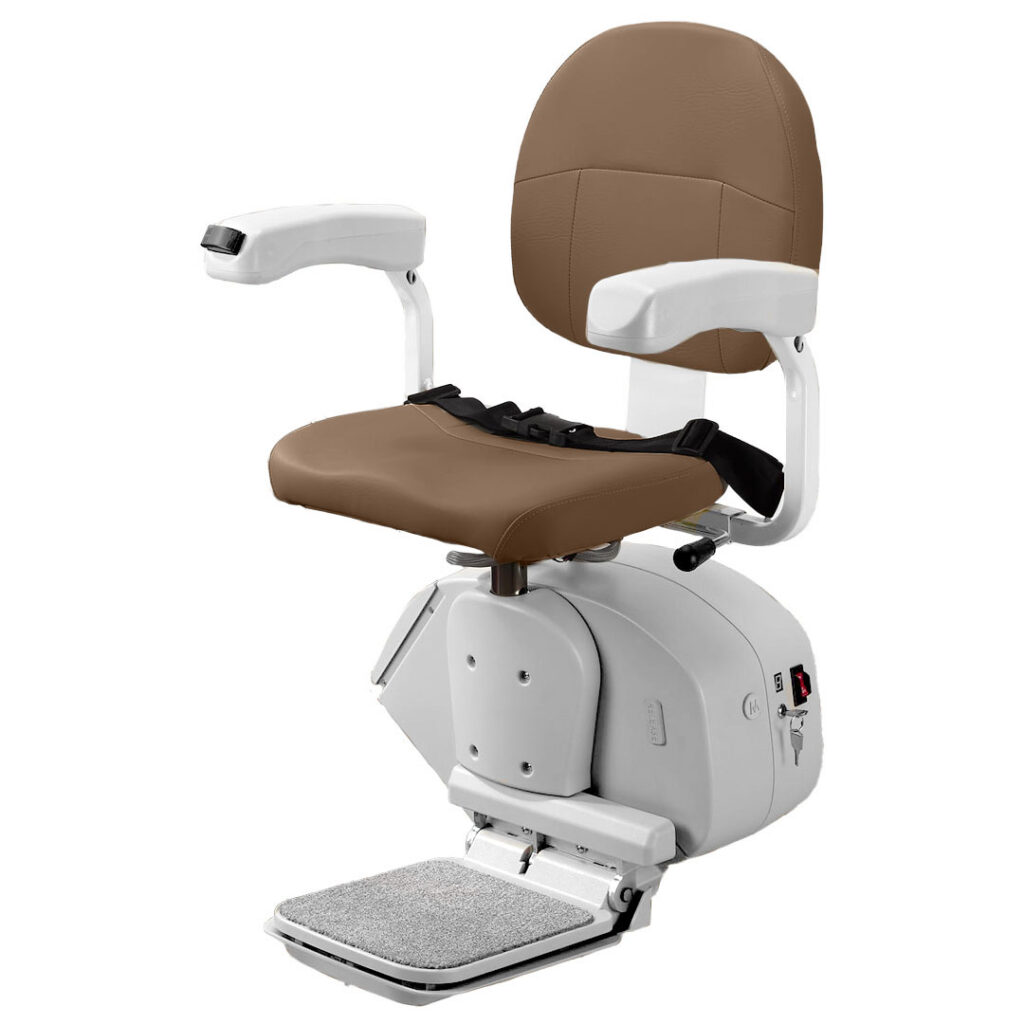

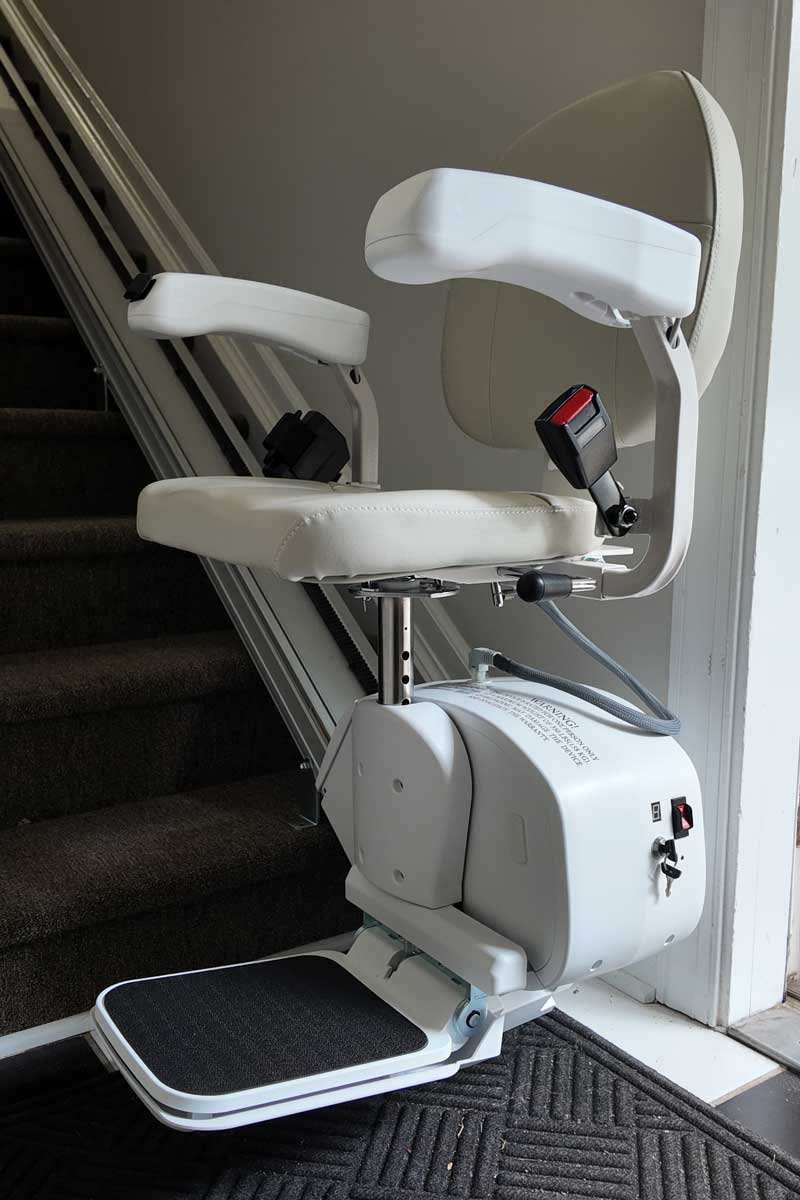

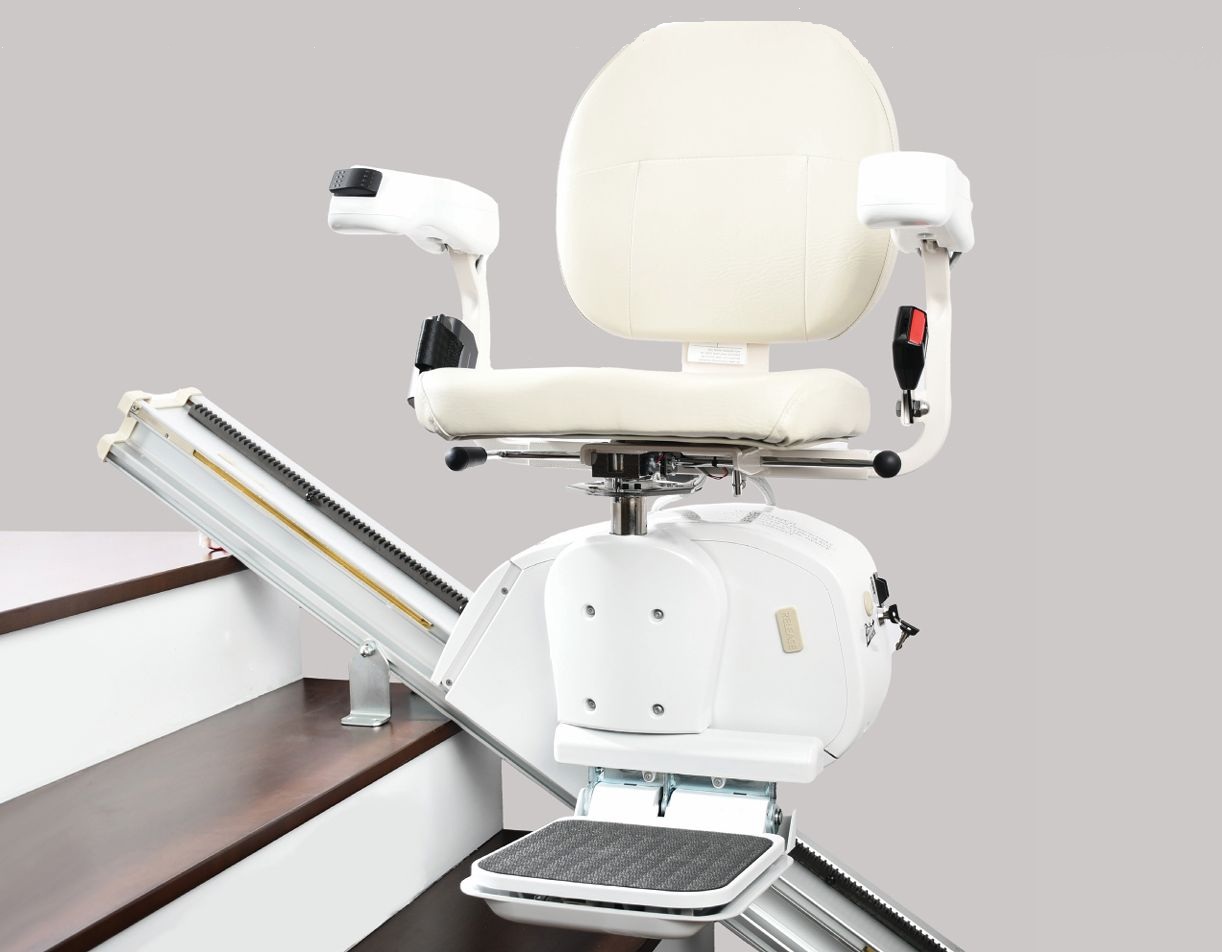

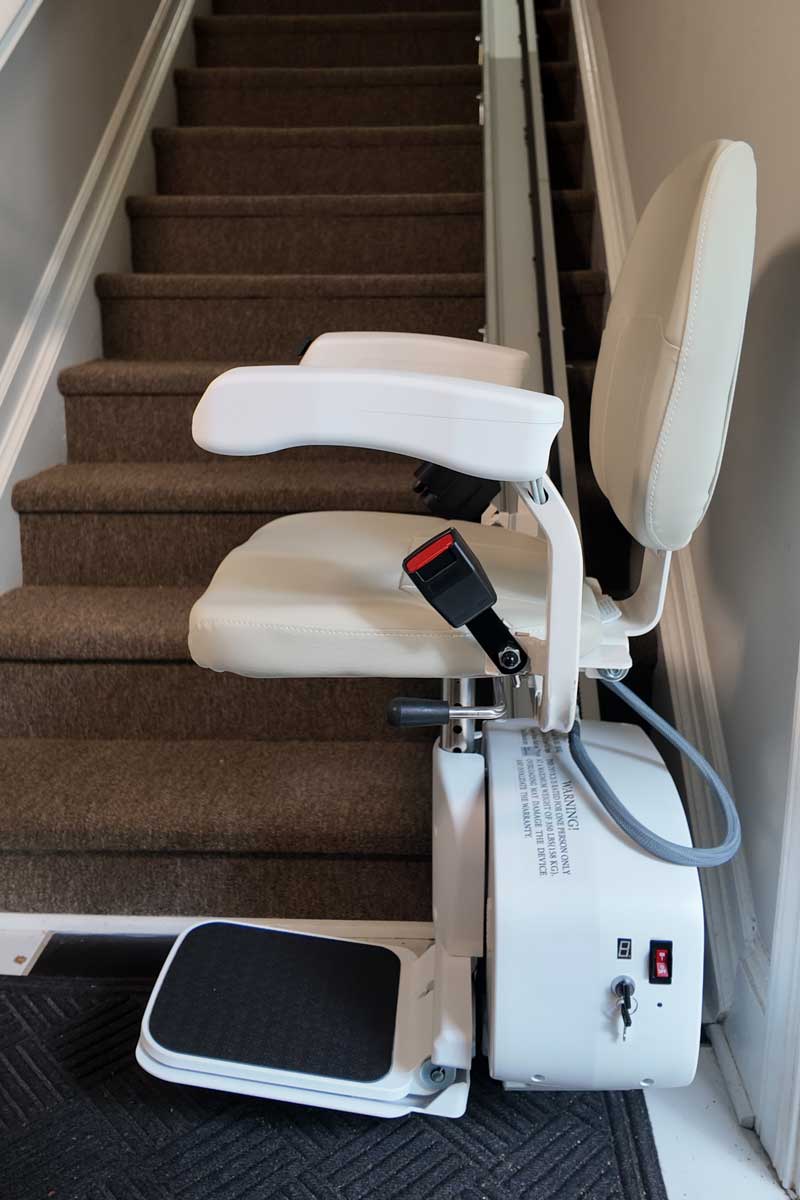

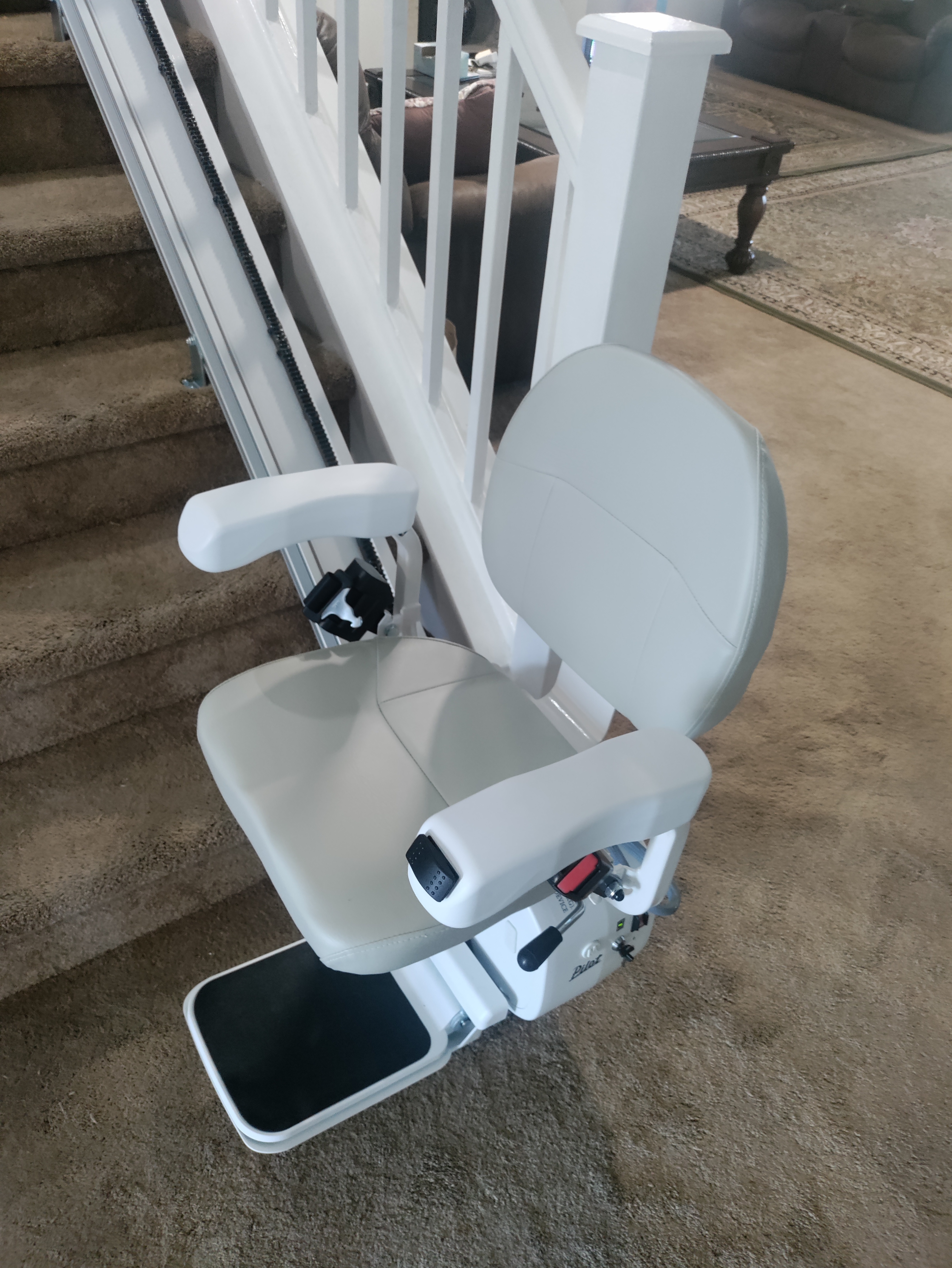

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
Notes: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option. A 10" overhang is required at the top of the stairs which needs to be calculated into the required track length.
Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.
Robust safety features include:
- 5 directional safety sensors
- Retractable seat belt
- Armrest and seat position sensors
- Over-speed governor
- Electro-mechanical brake system
- Key switch for controlled access
Notes: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option. A 10" overhang is required at the top of the stairs which needs to be calculated into the required track length.

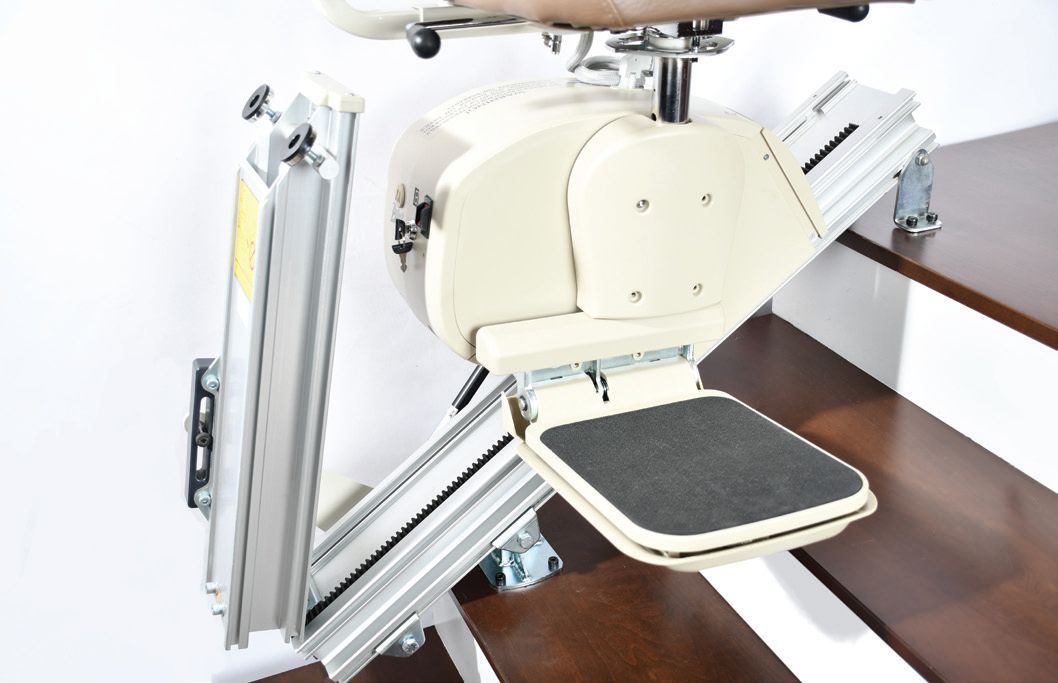

| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15,75' |
| Max Track Length, Optional | 32' |
| Swivel Seat | Yes |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Seat Width | 16" |
| Seat Depth | 16,36" |
| Unit Footprint, In Use | 23" |
| Unit Footprint, Folded | 13" |
| Call Stations Included | 2 Wireless |
| Seat Width, Max | 20" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 55° |
| Digital Diagnostics Display | Yes |
| Key Lock | Yes |
Stair Lift Orientation (Looking Up the Stairs)
- Right: +$0.00
- Left: +$0.00
Upholstery Color
- Beige: +$0.00
- Light Brown: +$0.00
- Dark Brown: +$0.00
- Red: +$0.00
- Beige: +$0.00
Track Length
- Standard 16' Of Track: +$0.00
- Additional 8' Section of Track: +$384.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length: +$0.00
- Step 2 - Top Landing to Bottom Step: +$0.00
- Step 3 - Stair Width: +$0.00
- Step 4 - Available Space at Bottom: +$0.00
- Step 5 - Height of One Step: +$0.00
- Step 6 - Length of One Tread: +$0.00
- Step 7 - One Step Front Edge to Front Edge: +$0.00
- Step 8 - Available Space at Top: +$0.00
Options
- Hinge Rail: +$834.00
- 6" Extended Indoor Brackets (each): +$9.00
- 8' Charging Cable Extension: +$15.00
- Extended Footplate Kit - 2": +$167.00
- Extended Seat Post Kit - 2": +$42.00
- Hinge Rail: +$834.00
Installation
- Self-Install: +$0.00
- Nationwide Installation Service: +$599.00
- Double Stair Lift Installation Service - Per Stair Lift: +$437.50
- Nationwide Measurement and Installation: +$749.00
Installation Special Cases
- Installation In Remote or Limited Access Location: +$345.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts: +$150.00
- Existing Stair Lift Removal: +$499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track: +$154.00
- Shipping to Alaska or Hawaii (Call for Price): +$0.00
